YOKOGAWA’s magnetic flowmeters, with over 50 years of industry leadership, are designed to deliver high performance and reliability, ensuring smooth operations across various sectors.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Yokogawa

1. General introduction

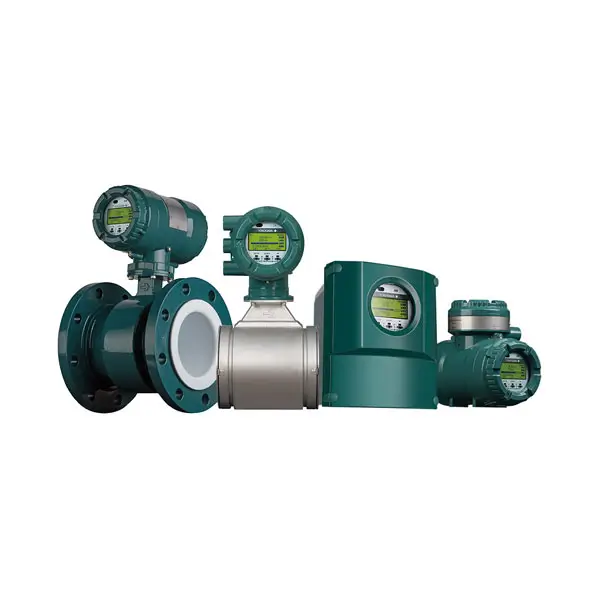

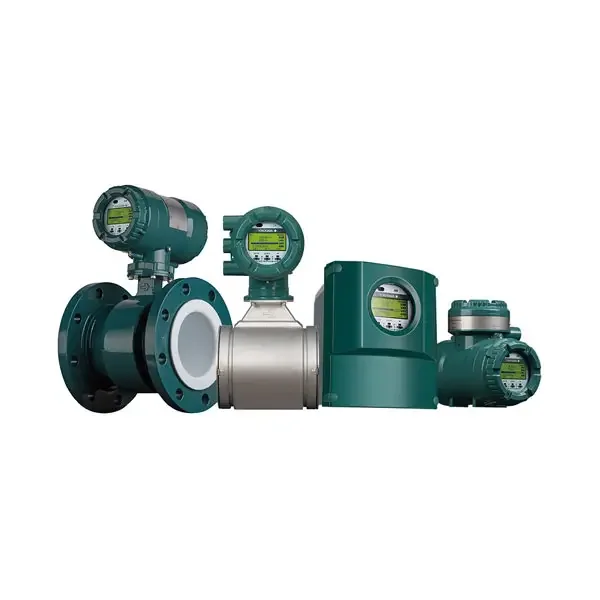

AXW magnetic flow meter is ideal for for general industrial process lines and water supply / sewage applications. With outstanding reliability and ease of operation and maintenance, developed on decades of field-proven experience, the AXW will increase user benefits while reducing total cost of ownership. The sizes are available from 25 to 1800 mm (1 to 72 in.). Besides fluorocarbon PTFE, lining can be selected from various rubber linings. Process connection also supports various specifications such as ASME, EN, AS, and JIS.

Besides, AXW magnetic flow meter come with several outstanding features as: dual frequency excitation method realizes stable measurement; maximum four inputs/outputs of current, pulse, and

status signals can be selected; improved operation and monitoring function, improved Maintainability variable Communication Protocol as Hart 7, Brain and Modbus. It’s available for both integrate and remote type, transmitter AXW4A and AXF11AG are selectable for remote construction type.

2. Main specifications

Meter size Accuracy Measure Range Lining Electrode Process   Connection
25 to 1800mm Standard:   ± 0.3% High 0.1 to 10m/s PTFE, Polyurethane, Natural Hard Rubber, Natural Soft   Rubber Stainless steel 316L, HASTELLOY   C-276 equivalent Wafer, Flange

3. Model selection of General-purpose, Submersible, Explosion protection, Wafer, Flange (25 to 400 mm/1 to 16 in.)

Model Suffix Codes Description
AXW025 Magnetic   Flowmeter (25 mm/1 in)
AXW032 Magnetic Flowmeter (32 mm/1.25 in)
AXW040 Magnetic Flowmeter (40 mm/1.5 in)
AXW050 Magnetic Flowmeter (50 mm/2 in)
AXW065 Magnetic Flowmeter (65 mm/2.5 in)
AXW080 Magnetic Flowmeter (80 mm/3 in)
AXW100 Magnetic Flowmeter (100 mm/4 in)
AXW125 Magnetic Flowmeter (125 mm/5 in)
AXW150 Magnetic Flowmeter (150 mm/6 in)
AXW200 Magnetic Flowmeter (200 mm/8 in)
AXW250 Magnetic Flowmeter (250 mm/10 in)
AXW300 Magnetic Flowmeter (300 mm/12 in)
AXW350 Magnetic Flowmeter (350 mm/14 in)
AXW400 Magnetic Flowmeter (400 mm/16 in)
Use -G General-purpose
-C Explosion   protection
-W Submersible
Construction A Integral   Flowmeter
D Remote Sensor   (for AXFA11)
G Remote Sensor   (for AXW4A)
Explosion Protection 000 Non Explosion   Protection Approval
KF2 ATEX Flameproof
SF2 IECEx Flameproof
Process Connection(Wafer) AA1 ASME Class 150   Wafer
AA2 ASME Class 300   Wafer
AE1 EN PN10 Wafer
AE2 EN PN16 Wafer
AE4 EN PN40 Wafer
AG1 JIS F12 Wafer
AJ1 JIS 10K Wafer
AJ2 JIS 20K Wafer
Process Connection (Flange F304) BA1 ASME Class 150   Flange
BA2 ASME Class 300   Flange
BE1 EN PN10 Flange
BE2 EN PN16 Flange
BE4 EN PN40 Flange
BG1 JIS F12 Flange
BJ1 JIS 10K Flange
BJ2 JIS 20K Flange
Process Connection (Flange CS) CA1 ASME Class 150   Flange
CA2 ASME Class 300   Flange
CE1 EN PN10 Flange
CE2 EN PN16 Flange
CE4 EN PN40 Flange
CG1 JIS F12 Flange
CJ1 JIS 10K Flange
CJ2 JIS 20K Flange
Lining F PTFE Lining
U Polyurethane Rubber Lining
H Natural Hard Rubber Lining
D Natural Soft Rubber Lining
Electrode L Stainless Steel 316L
H Nickel Alloy
Grounding Device 1 None
2 Grounding Rings
Housing and   Coating 1 Standard Material with Standard Coating
2 Standard Material with Rugged Coating
Cable Entry 0 JIS G1/2 Female
2 ASME 1/2 NPT Female
4 ISO M20×1.5 Female
Accuracy B Standard
Power Supply -1 100-240 V AC / 100-120 V DC
-2 24 V AC / DC
-N None (Remote Sensor)
Communication   and I/O D# #: A, B, C, D, E, F, G, H, J, K, BRAIN   and I/O
J# #: A, B, C, D, E, F, G, H, J, K, HART 7   and I/O
M# #: 0, 2, 6, Modbus and I/O
NN None (Remote Sensor)
Transmitter Wiring Terminal 1 M4 Screw-type
2 Clamp Type
N None (Remote   Sensor)
Display 1 With Display (English, Multi-language)
2 With Display (English, Chinese)
N Without Display/Remote Sensor
Optional codes /Optional codes

4. Model selection of General-purpose, Submersible, Explosion protection, Wafer, Flange (500 to 1800 mm/20 to 72 in.)

Model Suffix Codes Description
AXW500 Magnetic   Flowmeter (500 mm (20 in.))
AXW600 Magnetic   Flowmeter (600 mm (24 in.))
AXW700 Magnetic   Flowmeter (700 mm (28 in.))
AXW800 Magnetic   Flowmeter (800 mm (32 in.))
AXW900 Magnetic   Flowmeter (900 mm (36 in.))
AXW10L Magnetic   Flowmeter (1000 mm (40 in.))
AXW12L Magnetic   Flowmeter (1200 mm (48 in.))
AXW14L Magnetic   Flowmeter (1400 mm (56 in.))
AXW16L Magnetic   Flowmeter (1600 mm (64 in.))
AXW18L Magnetic   Flowmeter (1800 mm (72 in.))
Use G General-purpose
W Submersible type
Converter, Communication and I/O -# #: D, H, K Integral Flowmeter with 4 to   20 mA DC Output BRAIN and I/O
-# #: E, J, L Integral Flowmeter with 4 to   20 mA DC Output HART 7 and I/O
-# #: M, P Integral   Type, Modbus Communication
-N Remote Sensor   for Combined Use with AXFA11
-W Remote Sensor   (for AXW4A)
Power Supply 1 100-240 V AC / 100-120 V DC
2 24 V AC / DC
N None (Remote Sensor)
Lining F PTFE Lining
U Polyurethane Rubber Lining
H Natural Hard Rubber Lining
D Natural Soft Rubber Lining
Electrode L Stainless Steel 316L
H Nickel Alloy
Electrode   Structure 1 Non-replaceable
Grounding Device N None
Process   Connection -CA1 ASME B16.5/16.47 Class 150 Flange (Carbon Steel)
-CB1 AWWA C207 Class   D Flange (Carbon Steel)
-CEJ EN1092-1 PN6   Flange (Carbon Steel)
-CEK EN1092-1 PN10   Flange (Carbon Steel)
-CE1 EN1092-1 PN10   Flange (Carbon Steel)
-CE2 EN1092-1 PN16   Flange (Carbon Steel)
-CJ1 JIS B2220 10K   Flange (Carbon Steel)
-CS1 AS2129 Table D   Flange (Carbon Steel)
-CS2 AS2129 Table E   Flange (Carbon Steel)
-CT1 AS4087 PN16 Flange (Carbon Steel)
Lay Length N Standard
Electrical   Connection -0 JIS G1/2 female
-2 ANSI 1/2 NPT female
-4 ISO M20 x 1.5 female
Indicator 1 With Indicator (English, Multi-language
2 With Indicator (English, Chinese)
N Without Indicator / Remote Sensor
Calibration B Standard
Optional codes /Optional codes

5. Model selection of General-purpose, Explosion protection. Remote Transmitter

Model Suffix Codes Description
AXW4A Magnetic   Flowmeter Remote Transmitter
Use -G General-purpose
-C Explosion   Protection
Explosion

Protection

 000 Non Explosion   Protection Approval
KF2 ATEX Flameproof
SF2 IECEx Flameproof
Housing and   Coating 1 Standard   Material with Standard Coating
2 Standard   Material with Rugged Coating
Cable Entry 0 JIS G1/2 Female
2 ASME 1/2 NPT Female
4 ISO M20×1.5 Female
Power Supply 1 100-240 V AC / 100-120 V DC
2 24 V AC / DC
Communication   and I/O D# #: A, B, C, D, E, F, G, H, J, K, BRAIN   and I/O
J# #: A, B, C, D, E, F, G, H, J, K, HART 7   and I/O
M# #: 0, 2, 6, Modbus and I/O
NN None (Remote Sensor)
Transmitter Wiring Terminal 1 M4 Screw-type
2 Clamp Type
Display 1 With Display (English, Multi-language)
2 With Display (English, Chinese)
N Without Display/Remote Sensor
Optional codes /Optional codes

6. Model selection of Signal Cable for Remote Transmitter

Model Suffix Codes Description
AX01C Magnetic   Flowmeter Signal Cable
Cable Finish and

Length

 –A### Unfinished,   Cable length ### m, Set of Finishing Parts for M4 Screws
-C### Finished for   AXG4A, Cable Length ### m
-D### Finished for   AXFA11, Cable Length ### m
Finishing Parts /C# Finishing Parts   (# sets)
