Description
| Weight | 5 kg |
|---|---|
| Brand |
Yokogawa |
| Measurement Type |
Differential Pressure Transmitter |
The EJX118A is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

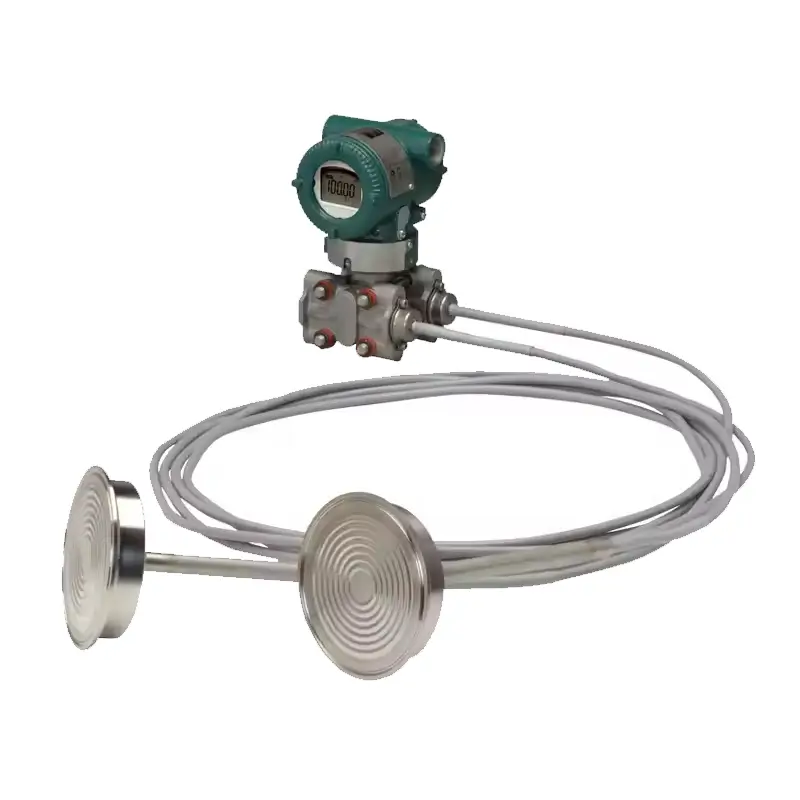

The EJX118A is the Differential Pressure Transmitter with Remote Diaphragm Seals in the series.
EJX118A features include:
- ± 0.15% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
- 10-segment Signal Charaterizer
- Active Capillary Fill Fluid Density Compensation
EJX118A Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Differential Pressure |
| Secondary Variable | Static Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.15% of Span |
| Secondary Variable | ±0.2% of Span |
| Response Time | |
| Primary Variable | 200 msec |
| Secondary Variable | 360 msec |
| Rangeability | |
| Primary Variable | 50:1 |
