Description
| Weight | 5 kg |
|---|---|
| Brand |
Yokogawa |
| Measurement Type |
Guage Pressure Transmitter |
The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of pressure transmitters.

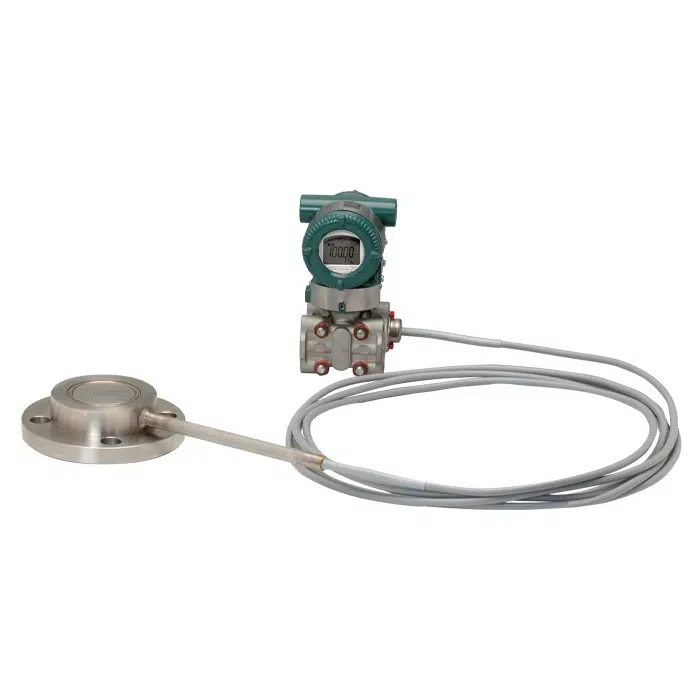

The EJX438A is a Gauge Pressure Transmitter with a Remote Diaphragn Seal in the series.
The EJX438A Standard features include:
- ± 0.15% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Capillary Fill Fluid Density Compensation
- Local Parameters Setting (LPS)
EJX438A Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Gauge Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.15% of Span |
| Response Time | |
| Primary Variable | 200 ms |
| Rangeability | |
| Primary Variable | 100:1 |
