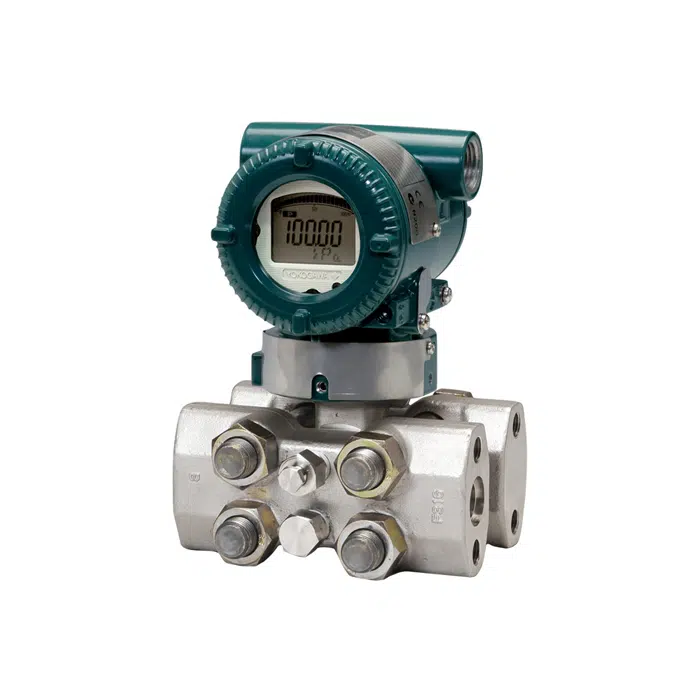

yokogawa,EJA440E Traditional-mount High Gauge Pressure Transmitter
1/1

yokogawa,EJA440E Traditional-mount High Gauge Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Weight 5 kg
Brand

Yokogawa
Measurement Type

Guage Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA440E is our traditional-mount high gauge pressure transmitter in the series.

EJA440E Standard features include:

  • ± 0.055% Accuracy
  • ± 0.1% Stability per 10 years
  • 90 ms Response Time
  • Exida and TUV SIL 2/3 Certified
  • Local Parameter Setting (LPS)

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

EJA440E Overview

Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.

Measurement Types
Primary Variable Gauge Pressure
Reference Accuracy
Primary Variable ±0.055% of Span
Stability (All Normal Operating Conditions)
Primary Variable ±0.1% of URL per 10 years
Response Time
Primary Variable 90ms
Burst Pressure (Absolute)
EJA510E 19,100 psi (132 MPa)
Specification Conformance
EJA-E Series ±3σ
