Description
| Weight | 4 kg |
|---|---|
| Brand |
Yokogawa |
| Measurement Type |
Differential Pressure Transmitter |
The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

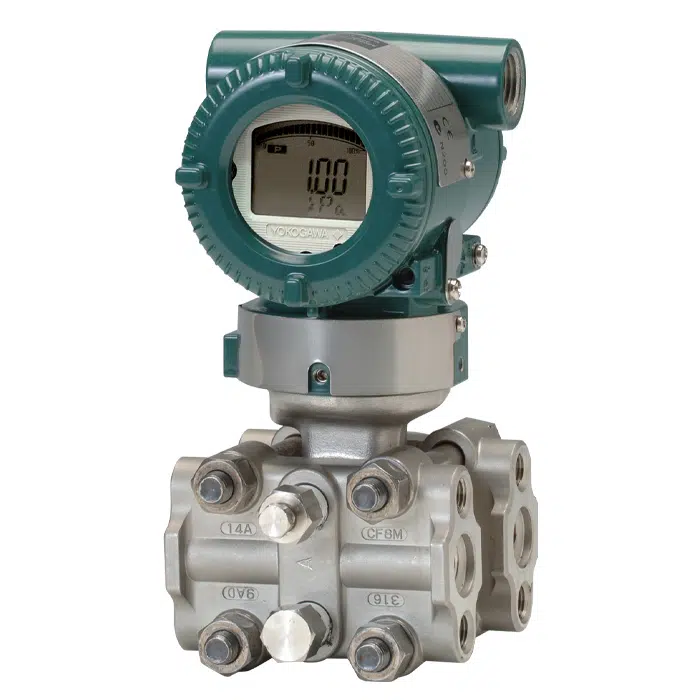

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.
EJA120E features include:
- ± 0.2% Accuracy (0.09% available with /HAC option)
- ± 0.3% per 1 year Stability
- 150 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
- True Draft Range design
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
EJA120E Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Differential Pressure (Draft Range) |
| Reference Accuracy | |
| Primary Variable | ±0.2% of Span |
| Response Time | |
| Primary Variable | 150 msec |
| Long Term Stability | |
| Primary Variable | ±0.3% of URL per 1 year |
| Rangeability | |
| Primary Variable | 10:1 |
