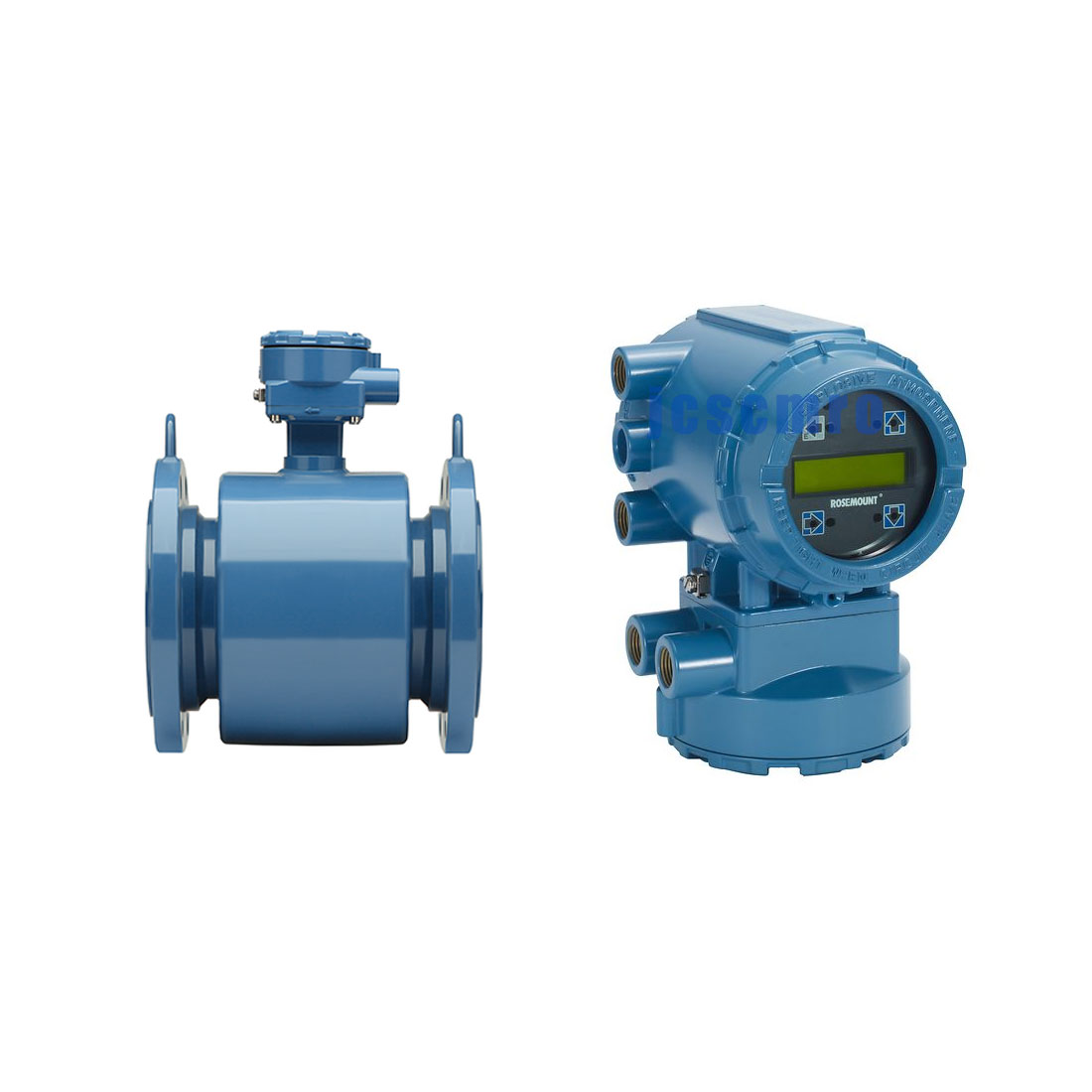

rosemount,Rosemount M-8732E Transmitter and MS120 Sensor | Rosemount MS Magnetic Flow Meter

Rosemount MS Magnetic Sensor MS120 for Slurry Applications, 12 inch (DN300)

• Capability to handle extremely noisy applications while delivering stable flow outputs better than a standard magnetic flow meter when paired with the 8782 transmitter
• Increased signal strengths allows for more precise flow measurement and reduce process variability even in hard to measure flows when paired with the 8782 transmitter
• Reduce sensor inventory with a dual calibration option
• Ensure reliability in the harshest environments with an all-welded sensor housing
• Guard against installation damage and leading-edge wear with optional lining protectors
• Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
• Capture any potential process fluid leakage with optional secondary containment compartments
• Minimize maintenance and repair with an obstructionless design featuring no moving parts, ideal for metering conductive slurries
• Pair the MS Slurry Sensor with the 8782 Slurry Transmitter for optimum performance in high noise applications.

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters

• Continually monitor meter health and performance without stopping the process with Smart Meter Verification
• Prevent moisture ingress with dual-compartment transmitter housing
• Improve process management with advanced Digital Signal Processing
• Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
• Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
• Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
• Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
• Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
