Description
| Brand |
Rosemount |
|---|

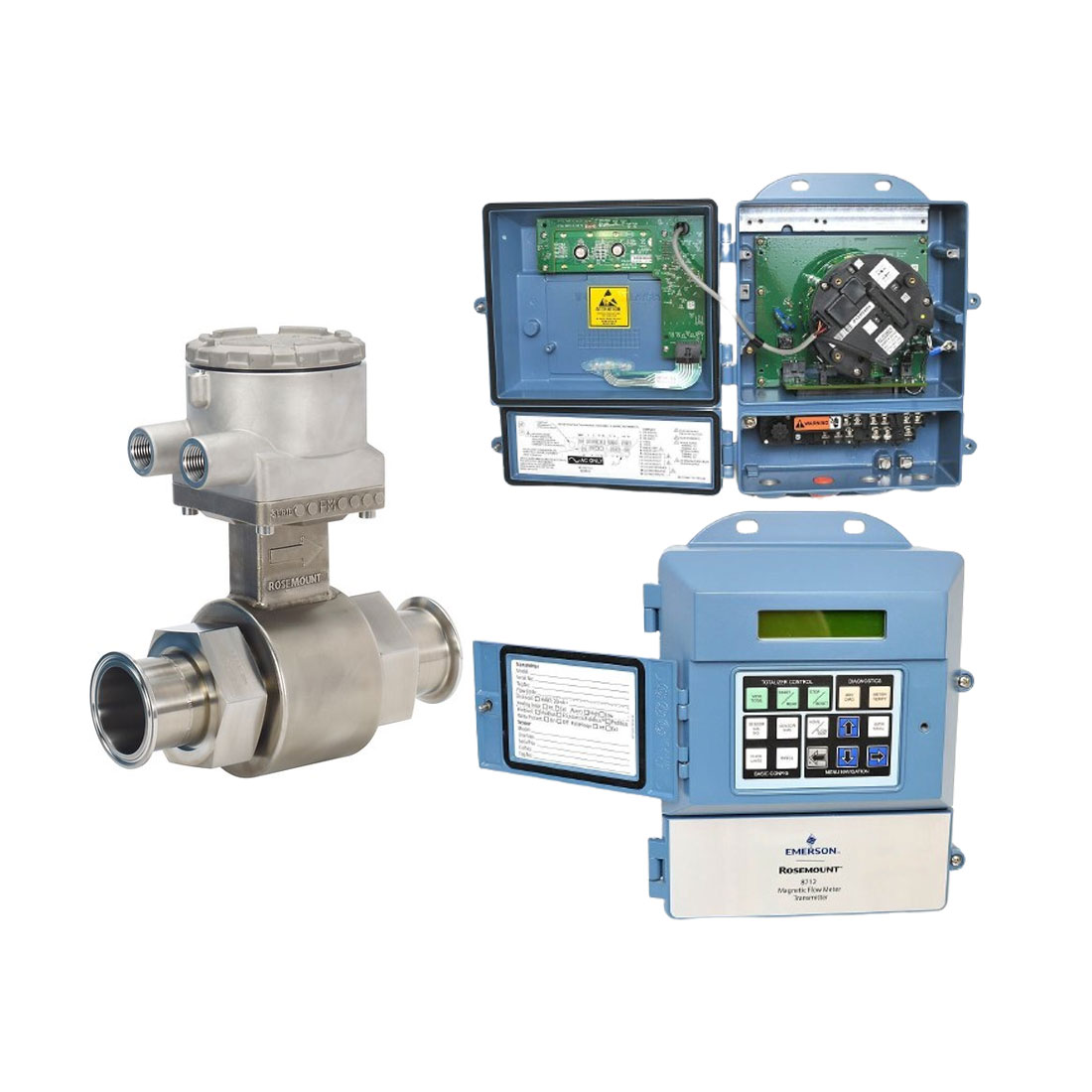

| Rosemount 8721040 Hygienic Magnetic Flow Meter Sensor, 4 Inch (DN100) | |
|---|---|
| Accuracy: Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown
Line Sizes: ½-4 inch (15-100 mm) Liner Materials: PFA Electrode Materials: 316L Stainless Steel, Nickel Alloy, Platinum Process Connections: Tri-Clamp® Sanitary Coupling IDF Sanitary Coupling (screw type) Weld Nipple DIN 11851 (Imperial and Metric) DIN 11864 (-1 and -2 Form A) SMS 1145 DEN US 50 Weld Nipple Product Certifications: 3-A, EHEDG Type EL, PMO (M-b-350) |
|
| Rosemount 8712E Magnetic Flow Meter Transmitter | |
|---|---|
| Accuracy: Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown.
Diagnostic: In Situ Meter Verification, Grounding & Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection Compatibility: All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707. Universal capabilities allow E-Series transmitters to be compatible with AC and DC powered sensors from other manufacturers. Power Supply: 90-250 VAC, 50-60 Hz or 12-42 VDC. Power consumption: 15 W maximum – DC, 40 VA maximum – AC Enclosure Rating: 8712E: Type 4x, IP66 |
|
Rosemount 8721040 Hygienic Magnetic Flow Meter Sensor, 4 Inch (DN100)
- Lightweight, compact stainless steel design makes installation easy
- Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
- Fully-welded meter body design allow for safety in hygienic applications
- Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
- Satisfy virtually any requirement with a variety of available sanitary process connections
- Better facilitate inspection and maintenance with easily accessed process gaskets
- Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair
Rosemount 8712E Magnetic Flow Meter Transmitter
- Intuitive Local Operator Interface with dedicated keys for ease of use
- Maximize uptime with Smart Meter Verification which monitors meter health and performance without stopping the process
- Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
- Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
- Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
- Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
