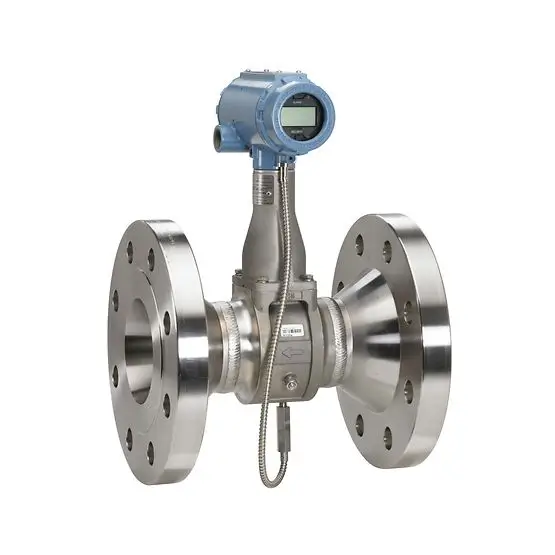

rosemount,Rosemount 8800 Series Vortex Flow Meters | 8800 Flanged Vortex Flow Meter
1/5

rosemount,Rosemount 8800 Series Vortex Flow Meters | 8800 Flanged Vortex Flow Meter

Rosemount 8800 Series Vortex Flow Meters provide exceptional reliability with a gasket-free, non-clog meter body, minimizing potential leak points and ensuring maximum process availability while reducing unscheduled shutdowns. Emerson’s unique design features isolated sensors, allowing for flow and temperature sensor replacement without breaking process seals.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount

The Rosemount 8800 Series Vortex Flow Meters we offer feature exceptional product quality with a gasket-free, non-clog design that significantly reduces leakage risks, ensuring continuous and stable process operation.

Specifications of Rosemount 8800

Flow Meter Accuracy ± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA/MCA option) ± 2% of mass flow in steam using 8800 MultiVariable (MTA/MCA option) ± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option) ± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option) ± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option) ± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option) ± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option) ± 0.65% of volumetric rate for liquids (uncompensated) ± 1% of volumetric rate for gas and steam (uncompensated)
Turndown 38:1
Output 4-20 mA with HART® 5 or 7 4-20 mA with HART® 5 or 7 and scalable pulse output FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block Modbus RS-485 with device status and 4 variables
Wetted Material Stainless Steel; 316 / 316L and CF3M Nickel Alloy; C-22 and CW2M High Temp Carbon Steel; A105 and WCB Low Temp Carbon Steel; LF2 and LCC Duplex; UNS S32760 and 6A Consult factory for other wetted material
Flange Options ANSI Class 150 to 1500 DIN PN 10 to PN 160 JIS 10K to 40K Flanges are available in a variety of facings Consult factory for additional flange ratings
Operating Temperatures -330°F to 800°F (-200°C to 427°C)
Line Size Flanged: 1/2″ – 12″ (15 – 300 mm) Wafer: 1/2″ – 8″ (15 – 200 mm) Dual: 1/2″ – 12″ (15 – 300 mm) Reducer: 1″ – 14″ (25 – 350 mm)
As a supply chain partner, we competitively price these high-quality products to provide you with the most cost-effective solutions. We have efficient shipping processes to guarantee timely delivery, meeting your urgent project needs. We provide comprehensive after-sales support, including technical assistance and service assurance, ensuring you achieve the best user experience and long-lasting equipment performance.

Rosemount-8800

JCSCMRO is dedicated to providing you with stable and reliable flow measurement products and solutions, supporting your business success. We are your best choice for a long-term partnership. Please feel free to contact us [ [email protected]]
