Description
| Brand |
Rosemount |
|---|
| Specifications |
|---|

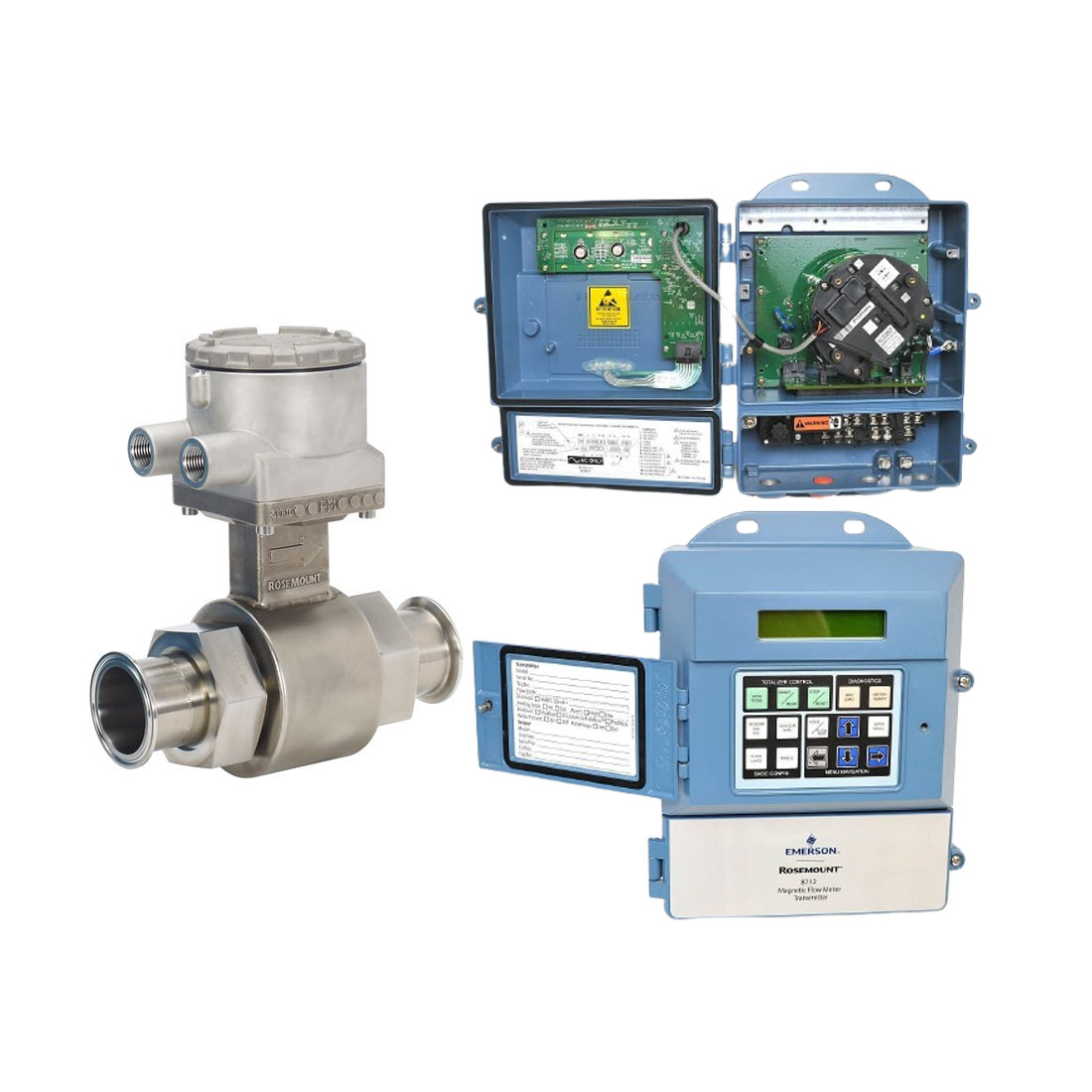

| Rosemount 8721015 Hygienic Magnetic Flow Meter Sensor, 1.5 Inch (DN40) |
| Accuracy: Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown Line Sizes: ½-4 inch (15-100 mm) Liner Materials: PFA Electrode Materials: 316L Stainless Steel, Nickel Alloy, Platinum Process Connections: Tri-Clamp® Sanitary Coupling IDF Sanitary Coupling (screw type) Weld Nipple DIN 11851 (Imperial and Metric) DIN 11864 (-1 and -2 Form A) SMS 1145 DEN US 50 Weld Nipple Product Certifications: 3-A, EHEDG Type EL, PMO (M-b-350) |
| Rosemount 8712E Magnetic Flow Meter Transmitter |
| Accuracy: Up to ±0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, ±0.25% over 40:1 flow turndown. Diagnostic: In Situ Meter Verification, Grounding & Wiring Fault Detection, High Process Noise Detection, Tunable Empty Pipe Detection, Transmitter Fault Detection, Sensor Fault Detection Compatibility: All Rosemount manufactured Sensors: 8705, 8711, 8721, 8707. Universal capabilities allow E-Series transmitters to be compatible with AC and DC powered sensors from other manufacturers. Power Supply: 90-250 VAC, 50-60 Hz or 12-42 VDC. Power consumption: 15 W maximum – DC, 40 VA maximum – AC Enclosure Rating: 8712E: Type 4x, IP66 |
Rosemount 8721015 Hygienic Magnetic Flow Meter Sensor, 1.5 Inch (DN40)
Lightweight, compact stainless steel design makes installation easy
Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
Fully-welded meter body design allow for safety in hygienic applications
Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
Satisfy virtually any requirement with a variety of available sanitary process connections
Better facilitate inspection and maintenance with easily accessed process gaskets
Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair
Rosemount 8712E Magnetic Flow Meter Transmitter
Intuitive Local Operator Interface with dedicated keys for ease of use
Maximize uptime with Smart Meter Verification which monitors meter health and performance without stopping the process
Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
