Description
| Brand |
Rosemount |
|---|---|
| Measurement Type |
Flow |

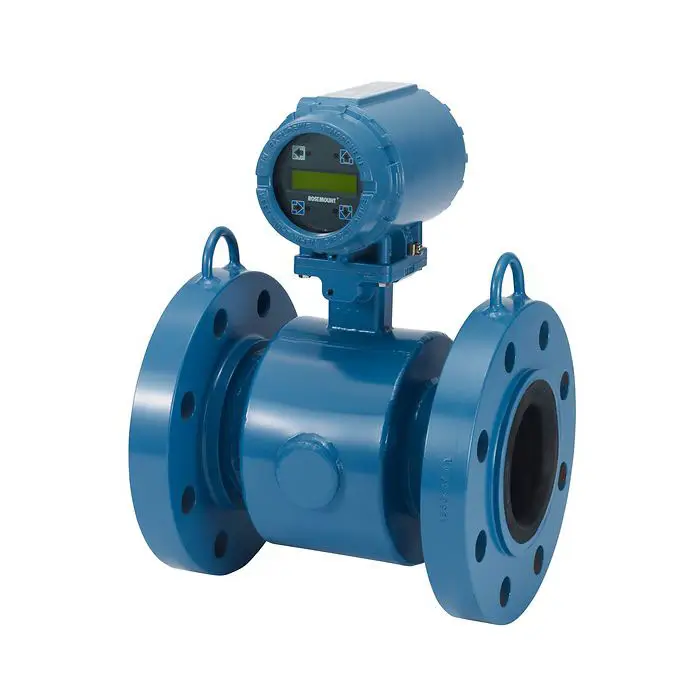

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.
Features
- For maximum protection, a fully welded sensor housing provides a hermetic seal
- Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
- Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
- Ensure reliability in the harshest environments with an all-welded sensor housing
- Guard against installation damage and leading-edge wear with an optional lining protector
- Minimize maintenance and repair with an obstructionless design featuring no moving parts
Specifications
| Accuracy | Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown |
| Line Sizes | ½-36 inch (15-900 mm) |
| Liner Materials | PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber |
| Electrode Materials | 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium |
| Flange Ratings | ASME B16.5 Class 150-2500 DIN PN 10-40 AS 2129 Table D and E AWWA C207 Table 3 Class D (30-36 inch only) |
| Submergence Protection | IP68 (Recommended with sealed cable glands) |
| Interchangeability | Compatible with all 8700 Series transmitters Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C |
