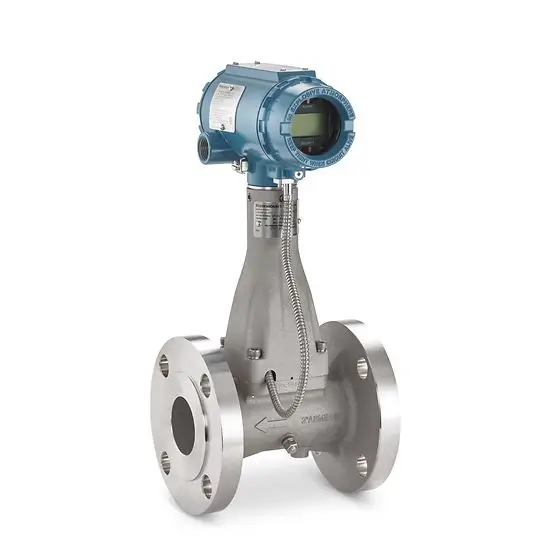

rosemount,Rosemount 8600 Series Vortex Flow Meter | Emerson 8600 Vortex Flow Meter

The Rosemount 8600 Utility Vortex flow meter is designed for general-purpose flow metering and utility applications, suitable for clean fluids and steam flow. This meter provides enhanced reliability and simplified maintenance due to its superior vibration immunity and lack of moving parts. Installation is straightforward, requiring no impulse lines or zeroing, while internal verification of both the electronics and sensor offers improved process insight.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount
Measurement Type

Flow

Specifications of Rosemount 8600

Flow Meter Accuracy ± 0.75% of volumetric rate for liquids
± 1% of volumetric rate for gas and steam
± 2% of rate for mass flow on steam using 8600 MultiVariable (MTA option)
Turndown 30:1
Output 4-20 mA with HART® 5
4-20 mA with HART® 5 and scalable pulse output
Wetted Material Stainless Steel – CF3M & CF8M
Flange Options ANSI Class 150 and 300
DIN PN 10 and PN 40
Process Temperature Limits -58°F to 482°F (-50°C to 250°C)
Temperature Sensor Range Using 8600 MultiVariable (MTA option) -40 to 800°F (-40 to 427°C)
Line Size 1 to 8-in; 25 to 200 mm

Features

  • Ensure reliability and cut costs with no moving parts to repair or maintain
  • Eliminate impulse lines and plugging issues with inline technology
  • Simplify installation with no impulse lines or field calibration or zeroing required
  • Cover a broad span of flow rates with wide rangeability
  • Electronics verification enables simplified troubleshooting
  • Perform easy maintenance with replaceable sensors
  • Remote mount electronics offered for easy access

Get a quote
