Description
| Brand |
Rosemount |
|---|
| Product Specifications | |

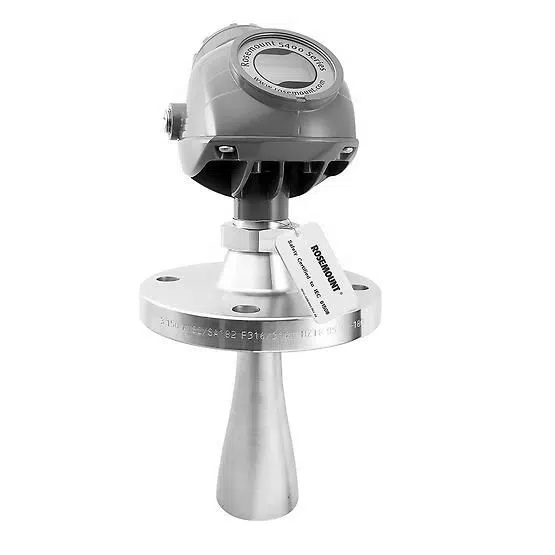

| Model | 5400 |
| Manufacturer | Rosemount |
| Condition | New, original factory packaging |
| Factory Warranty | 12 months |
| Key Features | |
| Type | Microwave Radar Level Transmitter |
| Measurement Functionality | Supports non-contact measurement of liquids and solids, suitable for various applications |
| Signal Output | 4-20 mA, supports HART communication; Optional Modbus and other communication protocols |
| Physical Characteristics | |
| Housing Material | Stainless steel for enhanced corrosion resistance and adaptability |
| Connection Interfaces | Flange connections, accommodating different specifications; 1 inch (1), 1½ inch, 2 inch threads/Tri Clamp |
| Operating Conditions | |
| Operating Temperature | Design temperature range: -76 to 752°F (-60 to 400°C) |
| Operating Pressure | Range: -15 to 5000 psig (-1 to 345 bar) |
| Materials | |
| Probe Material | 316/316L/EN 1.4404 |
| Sealing O-ring Material | Fluoropolymer (FKM) or other chemically resistant materials |
| Probe Characteristics | |
| Probe Type | Non-contact microwave probe |
| Probe Length | Minimum: 1 ft (0.3 m); Maximum: 33 ft (10 m) |
| Display and Certifications | |
| Display | Built-in digital display for easy operation and monitoring |
| Safety Certifications | Some models have ATEX flameproof certification; Overfill prevention certified according to WHG/TUV; Safety certified to IEC 61508 (including FMEDA data certificate) |
| Special Quality Assurance | Calibration data certificate; Material traceability certification: Consistent with ISO10474-3.1:2013 / EN10204-3.1:2004 |
| Additional Information | |
| Centering Disc | 3-inch centering disc, outer diameter 2.7 inches (68 mm) |
| Estimated Lead Time | 6 – 10 weeks |
| Shipping Weight | 20 kg |
