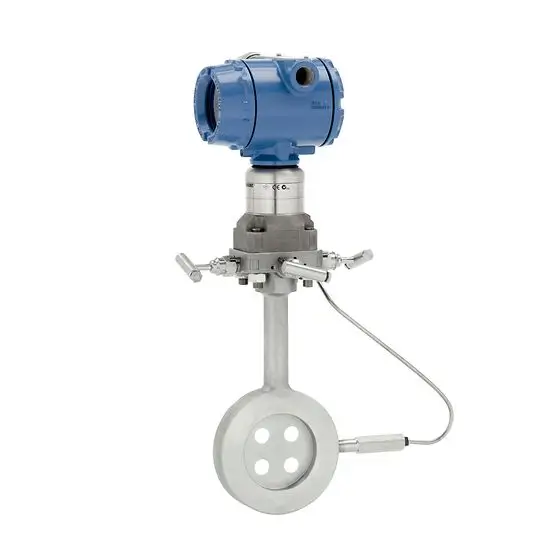

rosemount,Rosemount 3051SFC Compact Orifice Flow Meter

The Rosemount 3051SFC Compact Orifice Flow Meter provides accurate multivariable measurements in a single device. With options for a compact orifice plate or a patented 4-hole conditioning plate, it serves closed loop control, monitoring, and custody transfer applications. Suitable for line sizes up to 12 in. (300 mm), it is designed for gas, liquid, and steam service in harsh conditions. This device includes built-in flow calculations for fully compensated mass flow measurements and supports multiple communication protocols, including WirelessHART®.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount

Specifications of  Rosemount 3051SFC

Warranty Up to 15-year limited warranty
Range down Up to 200:1 (14:1 flow turndown)
Measurement Range Up to 1000 inH2O (2.48 bar) differential, Up to 3626 psia (250.00 bar) absolute, Up to 3626 psig (250.00 bar) gage
Line Size 0.5 to 12 in. (15 to 300 mm)
Output Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow
Communication Protocol 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus
Process Wetted Material 316 SST
Diagnostics Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
