rosemount,Rosemount 3051S Wireless In-Line Pressure Transmitter | Emerson 3051S

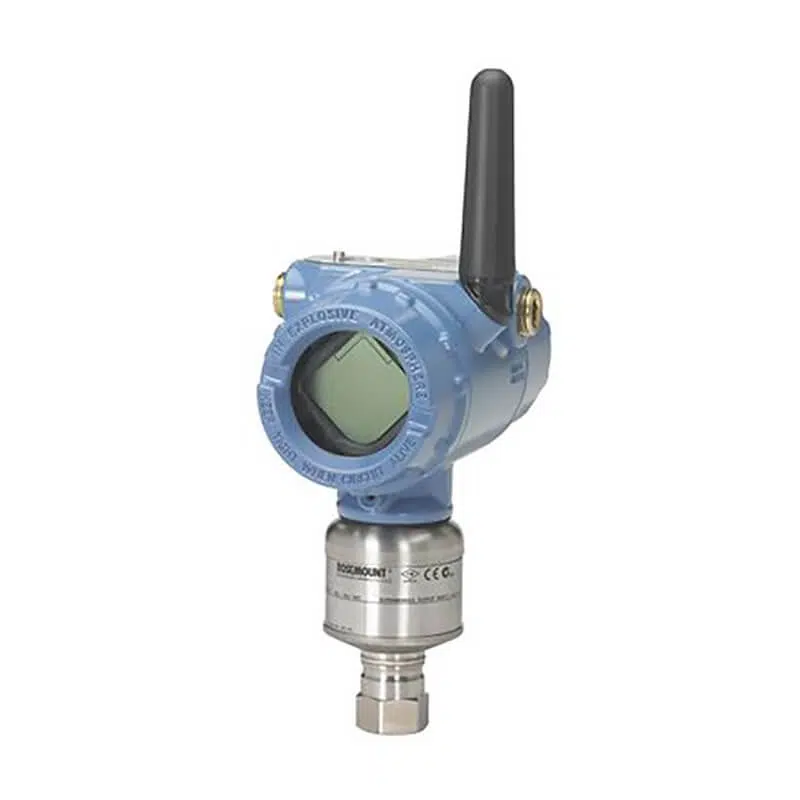

The Rosemount 3051S Wireless In-line Pressure Transmitter provides unmatched performance for gage and absolute pressure measurements. This top-tier, scalable SuperModule platform reduces process variability and maintenance needs while automating operations with secure, cost-effective WirelessHART technology. Designed for direct threaded connections, manifolds, or seal system solutions, this in-line pressure transmitter ensures reliable measurements and easy installation.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount

Specifications of Rosemount 3051S Wireless In-Line Pressure Transmitter

Warranty Up to 15-year limited warranty
Rangedown Up to 200:1
Communication Protocol WirelessHART®
Measurement Range Up to 10,000 psi (689.47 bar) Gage, Up to 10,000 psia (689.47 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals NSF, NACE, hazardous location, see full specs for complete list of certifications
Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

  • No-equal, scalable architecture optimizes performance, functionality and process connections
  • WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
  • Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation
  • Ultra and Classic Performance classes provide accuracy up to 0.025% of span
  • 15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility
  • Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)
  • 15-year warranty for worry-free operation
  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
