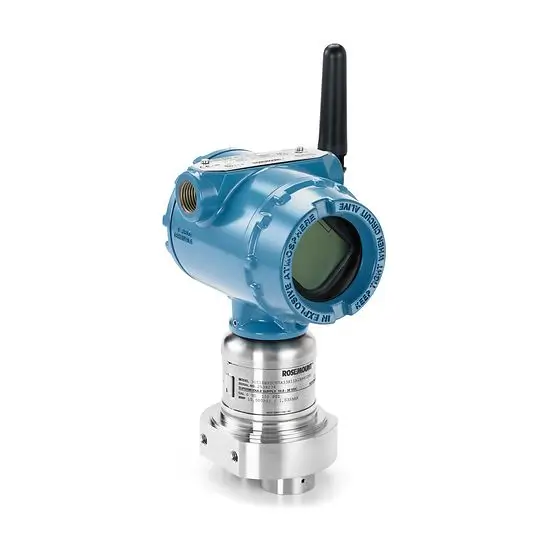

rosemount,Rosemount 3051S Wireless High Static DP Transmitter
1/1

rosemount,Rosemount 3051S Wireless High Static DP Transmitter

The Rosemount 3051S Wireless High Static DP Transmitter, featuring WirelessHART technology and a SuperModule™ design, is engineered to endure static pressures of up to 15,000 psi (1,034 bar). It leverages Rosemount’s Coplanar technology to minimize installation weight while providing precise measurements of differential pressure and device temperature. Designed with a coned and threaded direct connection for high static pressure environments, this wireless transmitter ensures accurate data delivery even in challenging conditions.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount

Specifications of Rosemount 3051S Wireless In-Line Pressure Transmitter

Warranty Up to 15-year limited warranty
Rangedown Up to 150:1
Communication Protocol WirelessHART
Measurement Range Up to 150 psi (623 bar) Differential with maximum working pressure up to 15,000 psi (1,034 bar)
Process Wetted Material Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals NACE, hazardous location, see full specs for complete list of certifications
Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

  • SuperModule design withstands static lines pressures of up to 15000 psi (1034 bar)
  • WirelessHART technology is secure, cost-effective and delivers >99% data reliability
  • Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
  • All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
  • Best-in-class wireless accuracy and stability for process automation
  • Robust design, backed by 10-year stability, withstands the harshest production environments
  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
