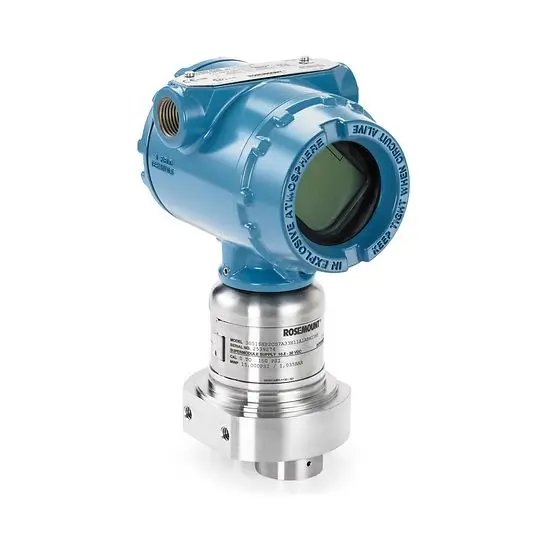

rosemount,Rosemount 3051S High Static DP Transmitter | Emerson 3051S

The Rosemount 3051S High Static DP Transmitter is designed to endure static pressures of up to 15,000 psi (1,034 bar) and features the compact SuperModule™ design, making it ideal for harsh production environments. This unparalleled transmitter offers both differential pressure and temperature measurements, leveraging Rosemount’s Coplanar™ technology to minimize installation weight. Additionally, it includes a coned and threaded direct connection to effectively withstand high static pressure conditions.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount

Specifications

Warranty Up to 15-year limited warranty
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION™ Fieldbus
Measurement Range Up to 150 psi (10.34 bar) Differential with maximum working pressure up to 15,000 psi (1034 bar)
Process Wetted Material Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications

Features

  • SuperModule design withstands static lines pressures of up to 15000 psi (1,034 bar)
  • Multivariable transmitter capable of differential pressure and temperature measurements
  • Innovative, compact, coplanar platform reduces up to 60% of the weight versus today’s high pressure transmitters
  • All-welded, hermetic design of the SuperModule platform resists overpressure and line pressure effects to ensure 0.055% accuracy
  • Robust design, backed by 10-year stability, withstands the harshest production environments
  • Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
  • Advanced diagnostics offer comprehensive diagnostic coverage from the process to the transmitter to the host
  • SIL 2/3 certified to IEC 61508 by an 3rd party and prior-use certificate of FMEDA data for safety installations
