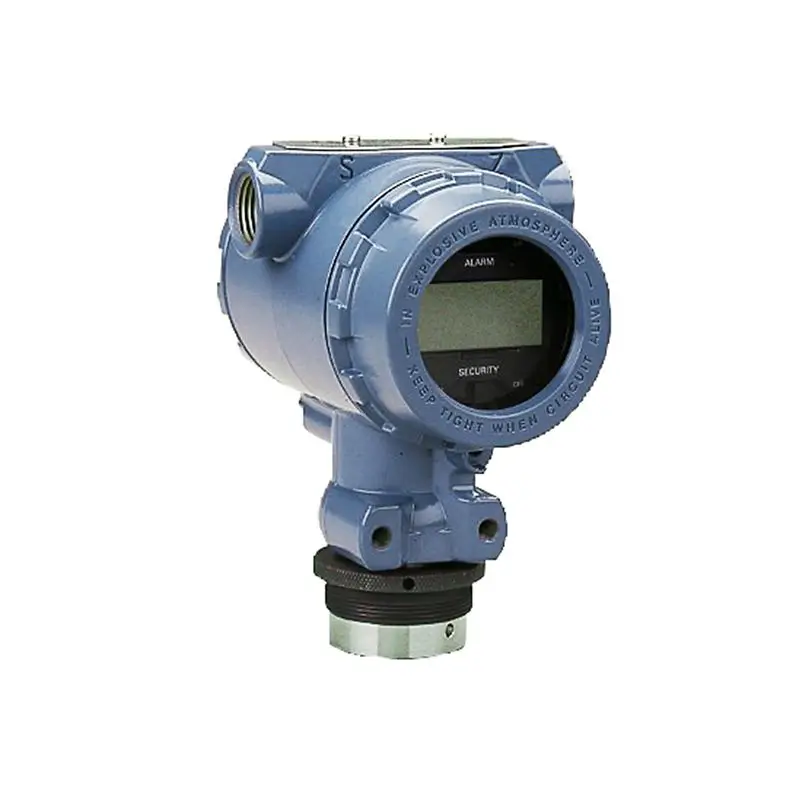

rosemount,Rosemount 2090P Pulp and Paper Pressure Transmitter

The Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount
Measurement Type

Guage Pressure Transmitter

Specifications of Rosemount 2090P

Warranty Up to 5-year limited warranty
Rangedown Up to 20:1
Communication Protocol 4-20 mA HART®
Measurement Range Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute
Process Wetted Material 316L SST
Diagnostics Basic Diagnostics
Certifications/Approvals Hazardous location, see full specs for complete list of certifications

Features of Rosemount 2090P

  • 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available
  • Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility
  • Lightweight, compact design for easy installation
  • Fully configurable LCD displays process variable, percent of range and diagnostic message
  • Communicates via 4-20 mA HART® protocol for streamlined host integration
