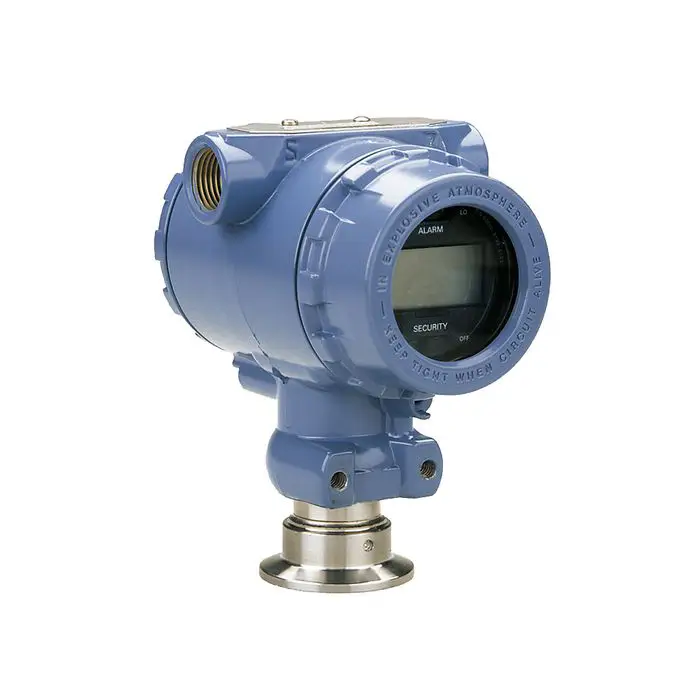

rosemount,Rosemount 2090F Hygienic Pressure Transmitter
1/1

rosemount,Rosemount 2090F Hygienic Pressure Transmitter

Designed for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for the pharmaceutical and food and beverage industries. Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware. In addition, this hygienic pressure transmitter conforms to 3-A® Sanitary Standards, allowing you to meet tough process requirements.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Rosemount
Measurement Type

Guage Pressure Transmitter

Specifications of Rosemount 2090P

Warranty Up to 5-year limited warranty
Rangedown Up to 20:1
Communication Protocol 4-20 mA HART®
Measurement Range Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute
Process Wetted Material 316L SST
Diagnostics Basic Diagnostics
Certifications/Approvals Hazardous location, see full specs for complete list of certifications

Features of Rosemount 2090P

  • 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available
  • Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility
  • Lightweight, compact design for easy installation
  • Fully configurable LCD displays process variable, percent of range and diagnostic message
  • Communicates via 4-20 mA HART® protocol for streamlined host integration

Get a quote
