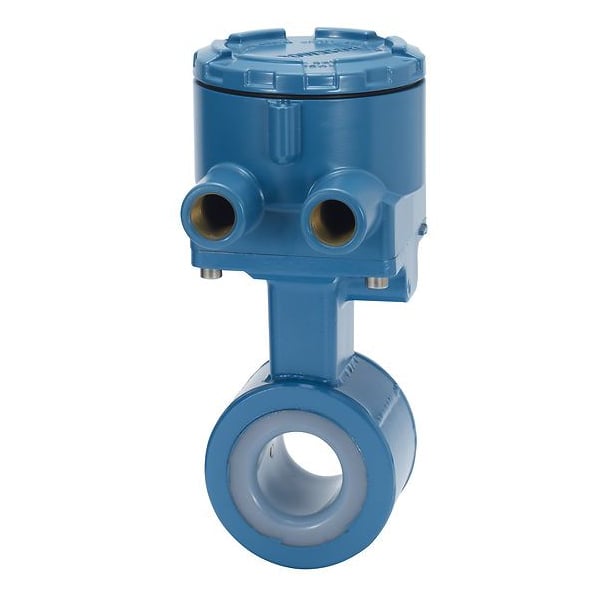

rosemount,8711THA015U5E1Q4 | Rosemount 8711 Wafer Magnetic Flow Meter Sensors

Part Number: 8711THA015U5E1Q4

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Part Number: 8711THA015U5E1Q4

Specifications
  • Accuracy: Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
  • Line Sizes: 0.15-8 inch (4-200mm)
  • Liner Materials: ETFE, PTFE, and PFA
  • Electrode Materials:
    316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
    Consult factory for additional material options
  • Flange Ratings:
    ASME B16.5 Class 150-300
    DIN PN 10-40
  • Interchangeability:
    Compatible with all 8700 Series transmitters
    Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C
  • Estimated Lead Time: 4 – 6 Weeks
  • Shipping Weight: 5 Kg

Get a quote
