Description
| Brand |
Rosemount |
|---|

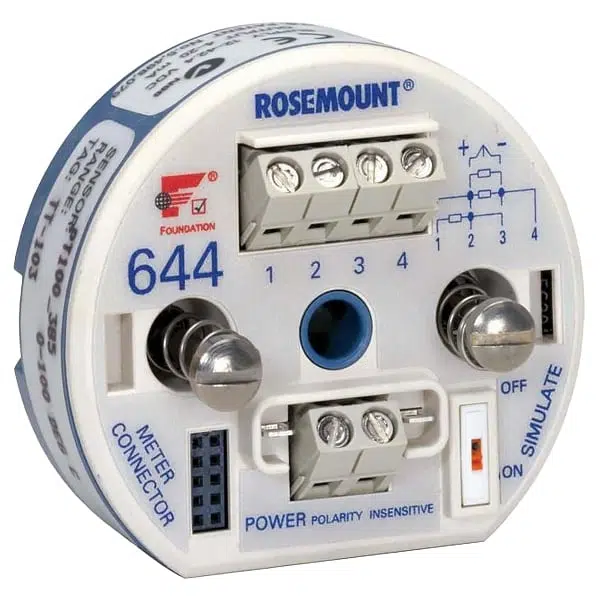

Part Number: 644HAE1J7M5Q4
Ordering Information
- Model: 644 – Temperature Transmitter
- Transmitter type: H – DIN A Head Mount – Single Sensor Input
- Output: A – 4-20 mA with digital signal based on HART protocol
- Product certifications: E1 – ATEX Flameproof
- Enclosure options: J7¹²
Housing style: Universal Junction Box, 2 entries
Material: Cast SST
Entry size: M20 X 1.5
Diameter: 3 in (76 mm) - Display and interface options: M5 – LCD Display
- Calibration certificate: Q4 – Calibration certificate (3-Point calibration with certificate)
NOTE:
- When ordered with XA, 1 /2-in. NPT enclosure will come equipped with an M20 adapter with the sensor installed as a process ready.
- Enclosure ships equipped with 50.8 mm (2-in) SST pipe ?U? bolt mounting kit.
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 4 Kg
