Description
Part Number: 5301HA2S7V4AM00137AAE5M1Q4

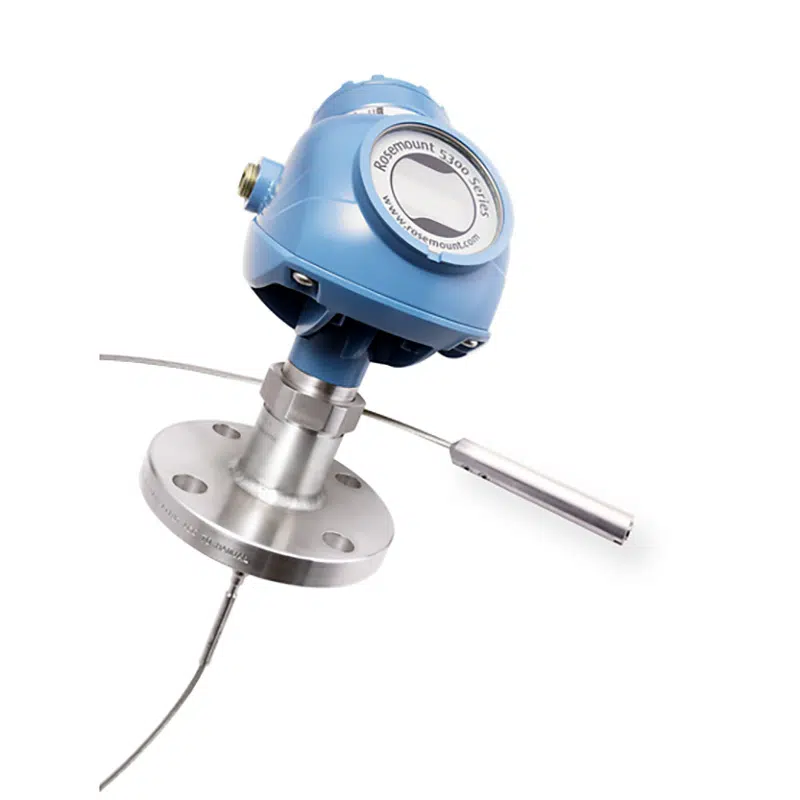

Model: 5300 Level Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 5301 | Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe) |
| Signal output | H | 4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7) |
| Housing material | A | Polyurethane-covered Aluminum (Aluminum alloy A360, maximum 0.6 percent Cu) |
| Conduit / cable threads | 2 | M20 x 1.5 adapter |
| Operating temperature and pressure | S | Design and operating temperature: -40 to 302 °F (-40 to 150 °C)-15 to 580 psig (-1 to 40 bar) |
| Material of construction: Process connection / probe | 7 | PTFE covered probe and flange. With plate design. |
| Sealing O-ring material | V | Fluoroelastomer (FKM) |
| Probe type | 4A | Description: Rigid Single Lead (8 mm) Process connections: Flange / 1- in.(1), 1½-in., 2- in.(1) Thread / Tri ClampProbe lengths: Min: 1 ft. 4 in. (0.4 m), Max: 9 ft. 10 in. (3 m) |
| Probe length units | M | Metric (meters, centimeters) |
| Total probe length (feet/m) | 001 | |
| Total probe length (inch/cm) | 37 | |
| Process connection – size / type | AA | 2-in. Class 150, RF (Raised Face Type)(2) |
| Hazardous locations certifications | E5(3) | USA Explosion-proof |
| Display | M1 | Integral digital display |
| Special quality assurance | Q4 | Calibration data certificate |
- Only available with Operating Temperature and Pressure code S.
- Forged one-piece flange provided for Standard (Std) seal together with Material of construction code 1, 7 or 8, and Probe type code
3A, 3B, 3V, 4A, 4B, 4U, 4S, 5A, or 5B. Welded construction provided for other combinations. - Probes are intrinsically safe.
- Estimated Lead Time: 4 – 5 Months
- Shipping Weight: 25 Kg
