Description

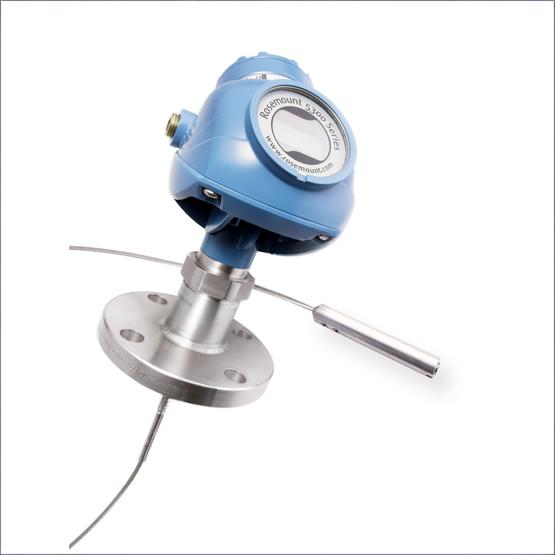

Rosemount Part No. 5301HA1P1N4AM00290CAE5M1P1C1Q4Q8
5300 Level Transmitter.
Ideal for demanding liquids, slurries, and solids measurements, the Rosemount 5300 Level Transmitter offers advanced reliability and safety features for level and interface applications. The Rosemount 5300 offers advantages such as ease of installation, no calibration required, and independence from process conditions. Plus, it’s SIL 2 certified, making it your first choice for safety applications. It features rugged construction and powerful onboard diagnostics, so you can focus on what matters most – your plant.
| Accuracy | ± 0.12 in. (3 mm) |
| Repeatability | ± 0.04 in. (1 mm) |
| Measurement Range | Up to 164 ft (50 m) |
| Operating Pressure | Full vacuum to 5000 psi (Full vacuum to 345 bar) |
| Operating Temperature | -320 to 752 °F (-196 to 400 °C) |
| Communication Protocol | 4-20 mA/HART™, Foundation™ Fieldbus, Modbus™ |
| Safety | SIL 2 IEC 61508 certification |
| Safety | TÜV tested and WHG approved for overfill prevention |
| Safety | Remote proof-test capabilities through verification reflector |
| Diagnostics | Enhanced diagnostics enabling proactive maintenance |
| Probe Types | Rigid single lead, Segmented single lead, Flexible single lead, Rigid twin lead, Flexible twin lead, Coaxial and large coaxial, PTFE coated probes, Vapor probe |
