Description
Part Number: 3408A1AHA1E71NAZZSBAM6DA1Q4

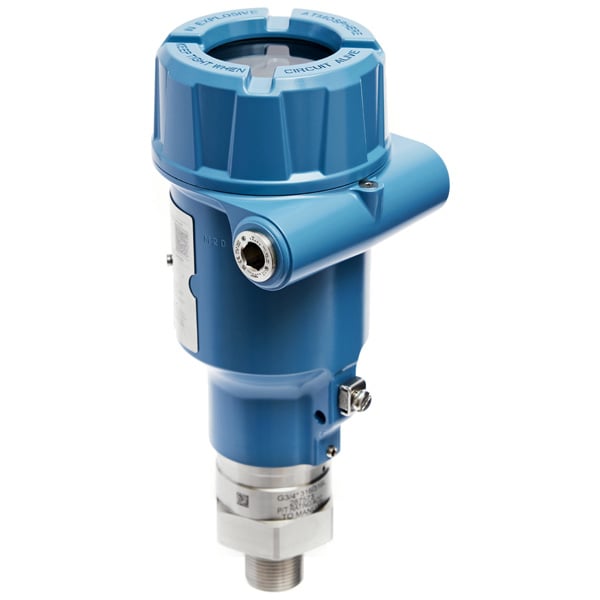

Model: 3408 Radar Level Transmitter Non-Contacting
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 3408 | Radar Level Transmitter |
| Profile | A | Standard monitoring & control applications |
| Measurement type | 1 | Liquid level measurement |
| Performance class | A | Description: Ultra accuracy Reference accuracy: ±0.04 in. (±1 mm) |
| Signal output | H | 4–20 mA with HART® 7 |
| Housing material | A | Aluminum |
| Conduit/cable threads | 1 | Description: ½-14 NPT Note: Blind plug in aluminum |
| Hazardous locations certifications | E7(1) | IECEx Flameproof, Dust Ignition-proof |
| Materials of construction | 1 | Description: 316/316L/EN 1.4404, PTFE lens Available antenna types: Lens |
| Process connection type | N | Description: NPT thread Available antenna types: Lens |
| Process connection size | A | Description: 1½-in. Available process connections: Thread |
| Process connection rating | ZZ | None (for use with threaded process connection type) |
| Antenna type | SBA | Description: Lens antenna Operating pressure: -15 to 363 psig (-1 to 25 bar) Operating temperature: -76 to 392 °F (-60 to 200 °C) |
| Display | M6 | Graphical LCD display |
| Diagnostic functionality | DA1 | HART Smart Diagnostics Suite |
| Special quality assurance | Q4 | Calibration data certificate |
- Not available with ATAP (Atmospheric Temperature and Atmospheric Pressure) lens antenna.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 4 Kg
