Description
Part Number: 3102HA1FRCG5ST

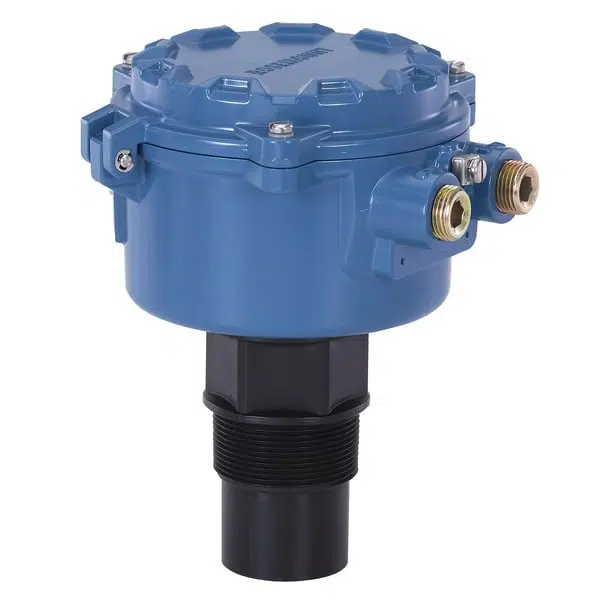

Model: 3102 Level Transmitter
Manufacturer: Rosemount
*This product has been discontinued.
Ordering Information
- Model: 3102 – Ultrasonic Level Transmitter with 2 integral relays, 1 to 36 ft. (0,3 to 11 m) range
- Signal Output: H – 4-20 mA with HART communication
- Housing Material: A – Polyurethane-covered Aluminum
- Conduit/Cable Thread: A – 1/2 – 14 NPT
- Wetted Material: F – PVDF
- Process Connection: RC¹ – 2-in. NPT thread
- Product Certificates: G5 – FM Ordinary Location
- Tag Plates: ST² – Stainless Steel engraved tag plate
- Choosing this option implies US (Imperial) units of measurement of feet are required for the default configuration. Configuration can be changed on-site.
- The maximum number of characters that can be engraved is 16.
- Estimated Lead Time: 8 – 12 Weeks
- Shipping Weight: 8 Kg
