Description
Part Number: 3051S2TG3A2E11A1AB4D1L1M5P2

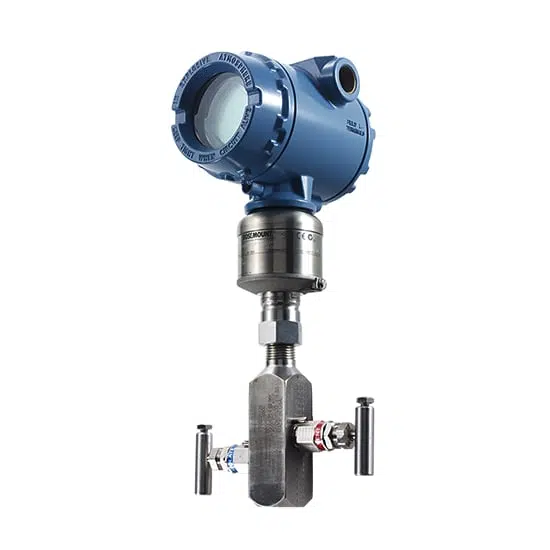

Model: 3051S Scalable Pressure Transmitter
Brand: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
- Rangedown: Up to 200:1
- Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus
- Measurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
- Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
- Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
- Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure Transmitter
Features
- Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
- Best-in-class, scalable architecture enhances performance, functionality and process connections
- Transmitter arrives fully assembled and leak tested for simple installation and maintenance
- All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
- Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty
- 200:1 rangedown produce reliable measurements and wide application flexibility
- Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
- Remote display and interface offers easy access to process and device information
Ordering Information
| Model | 3051S | Scalable pressure transmitter |
| Performance class | 2 | Classic: 0.035% span accuracy, 150:1 rangedown, 15-year stability |
| Connection type | T | In-line |
| Measurement type | G | Gauge |
| Pressure range | 3A | –14.7 to 800 psi (–1.01 to 55.15 bar) |
| Isolating diaphragm | 2 | 316L SST |
| Process connection | E11 | ½–14 NPT female |
| Transmitter output | A | 4–20 mA with digital signal based on HART® protocol |
| Housing style | 1A | PlantWeb housing Material: Aluminum Conduit size entry: 1/2–14 NPT |
| Mounting bracket | B4 | Bracket, all SST, 2-in. pipe and panel |
| Hardware adjustments | D1 | Hardware adjustments (zero, span, alarm, security) |
| Sensor fill fluid | L1 | Inert sensor fill fluid |
| Display type | M5 | Plantweb™ LCD display |
| Special cleaning | P2 | Cleaning for special services |
- Estimated Lead Time: 8 – 12 Weeks
- Shipping Weight: 8 Kg
