Description
| Weight | 10 kg |
|---|---|
| Brand |
Rosemount |
| Type of Pressure Sensor |
Level Transmitter |
Part Number: 3051L4AG09D21AAM5RCLHR5

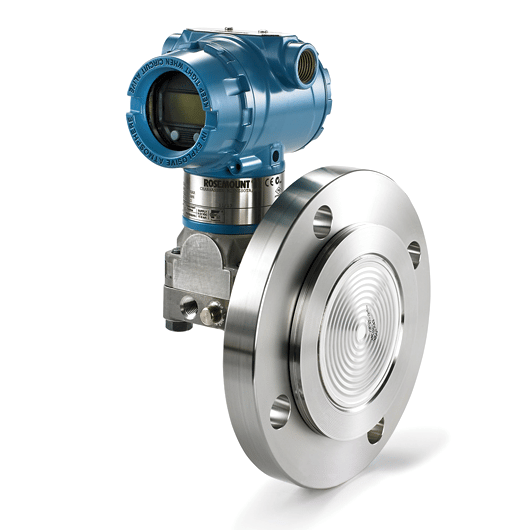

Model: 3051L Level Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 3051L | Level transmitter |
| Pressure range | 4 | –300 to 300 psi (–20.68 to 20.68 bar) |
| Transmitter output | A(1) | 4–20 mA with digital signal based on HART® Protocol |
| Process connection size, material, extension length (high side) | G0(2) | Process connection size: 2-in./DN 50/A Material: 316L SST Extension length: Flush mount only |
| Mounting flange size, rating, material (high side) | 9 | |
| Seal fill fluid | D | Description: Silicone 200 Specific gravity: 0.93 Temperature limits (ambient temperature of 70° F [21° C]): –49 to 401 °F (–45 to 205 °C) |
| Low pressure side | 21 | Configuration: Differential Flange adapter: SST Diaphragm material: 316 SST Sensor fluid: Silicone |
| O-ring | A | Glass-filled PTFE |
| Housing material | A | Material: Aluminum Conduit entry size: ½–14 NPT |
| Display and interface options | M5 | LCD display |
| RCL | ||
| HART revision configuration (requires HART Protocol output code A) | HR5 | Configured for HART Revision 5 |
- HART Revision 5 is the default HART output.
- Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production
environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE
MR0103 for sour refining environments.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 8 Kg
