Description
| Weight | 10 kg |
|---|---|
| Brand |
Rosemount |
| Type of Pressure Sensor |
Level Transmitter |

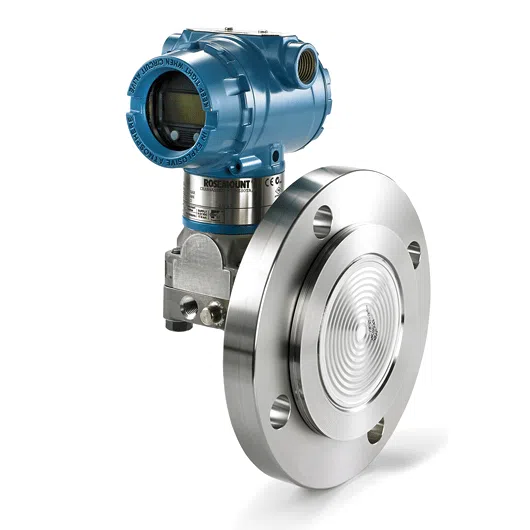

Part Number: 3051L2AA0FD11AA
Ordering Information
- Transmitter type¹: 3051L – Level Transmitter
- Pressure range: 2 – -250 to 250 inH20 (-621,60 to 621,60 mbar)
- Transmitter output²: A – 4?20 mA with digital signal based on HART protocol
- Process connection size, diaphragm material (high side): A – 3-in./DN80; 316L SST
- Seal extension length (high side): 0 – None, flush mount
- Mounting flange size, rating, material (high side): F³ – 3-in.(Size); ANSI/ASME B16.5 Class 150(Rating); 316 SST(Material)
- Seal fill fluid (high side): D
- Low pressure side: 11³ – Gage (Configuration); SST (Flange adapter); 316L SST (Diaphragm); Silicone (Sensor fill fluid)
- O-ring: A – Glass-filled PTFE
- Housing material: A – Aluminium; 1/2-14 NPT (Conduit entry size)
NOTE:
- Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
- Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
- Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 6 Kg
