Description
Part Number: 3051CD3A02B1BH2B1M4DF
Ordering Information

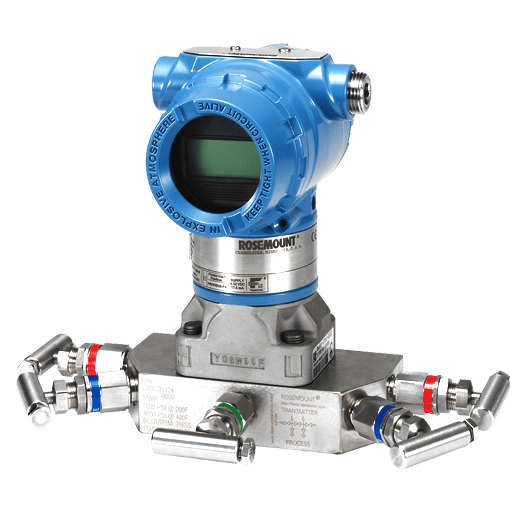

- Model: 3051C¹ – Coplanar Pressure Transmitter
- Measurement type: D – Differential
- Pressure range: 3 – -1000 to 1000 inH20 (-621,60 to 621,60 mbar)
- Transmitter output: A² – 4-20 mA with Digital Signal Based on HART Protocol
- Materials of construction: 0 – Alternate Process Connection
- Isolating diaphragm: 2³ – 316L SST
- O-Ring: B – Graphite-filled PTFE
- Sensor: 1 – Silicone
- B –
[Housing material] Aluminium
[Conduit entry size] M20 x 1.5 - Alternate flange4: H2 – Traditional Flange, 316 SST, SST drain/vent
- Mounting bracket5: B1 – Traditional flange bracket, CS, 2-in. pipe and panel
- Display and interface options: M46 – LCD Display with Local Operator Interface
- Flange adapters: DF7 – 1/2-14 NPT flange adapter(s)
- Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
- Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
- Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
- Requires 0 code in Materials of Construction for Alternate Process Connection.
- Panel mounting bolts are not supplied.
- Not available with FOUNDATION fieldbus (Output Code F), Wireless (Output Code X), or Low Power Output (output code M).
- Not valid with Alternate Process Connection options S3, S4, S5, and S6.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
