Description
Part Number: 3051CD3A02A1AC1M5B7H2L4Q4

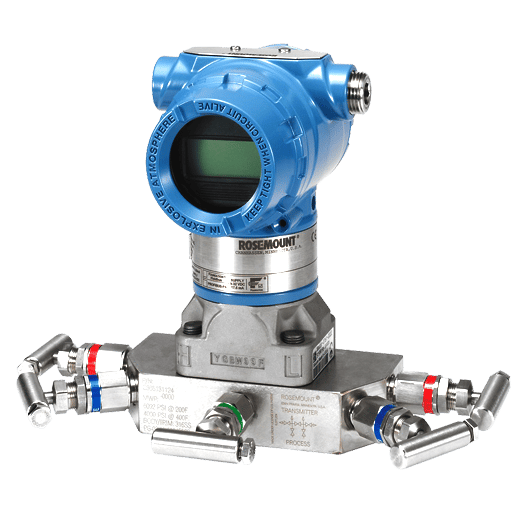

Model: 3051C Coplanar Pressure Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Overview
Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
- Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)
- LOI with straightforward menus and built-in configuration buttons (option code M4)
- Safety Certification (option code QT)
Ordering Information
| Model | 3051C(1) | Coplanar Pressure Transmitter |
| Measurement type | D | Differential |
| Pressure range | 3 | –1000 to 1000 inH2O (-2,48 to 2,48 mbar) |
| Transmitter output | A(2) | 4 – 20 mA with Digital Signal Based on HART Protocol |
| Materials of construction | 0 | Alternate Process Connection |
| Isolating diaphragm | 2(3) | 316L SST |
| O-ring | A | Glass-filled PTFE |
| Sensor fill fluid | 1 | Silicone |
| A | Housing material: Aluminum Conduit entry size: ½–14 NPT |
|
| Software configuration | C1(4) | Custom Software Configuration (completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for Wireless required with order) |
| Display and interface options | M5 | LCD Display |
| Mounting bracket(5) | B7 | Traditional flange bracket, B1 with SST bolts |
| Alternate flange(6) | H2 | Traditional Flange, 316 SST, SST drain/vent |
| Bolting material | L4 | Austenitic 316 SST Bolts |
| Calibration certificate | Q4 | Calibration Certificate |
- Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
- Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to
HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. - Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to
certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. - Only available with HART 4-20 mA Output (output code A) and Wireless Output (output code X)
- Panel mounting bolts are not supplied.
- Requires 0 code in Materials of Construction for Alternate Process Connection.
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 8 Kg
- Made in Singapore
