Description
| Brand |
Rosemount |
|---|

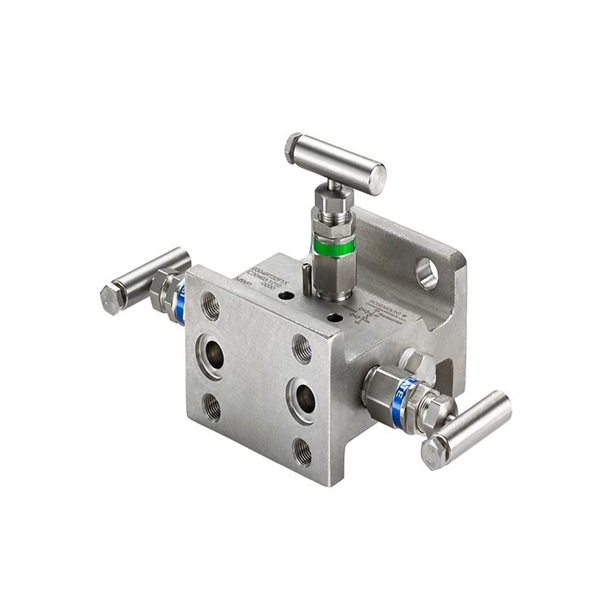

Engineered for 2-, 3- and 5-valve configurations, the Rosemount 304 Conventional Manifold attaches to a transmitter with a traditional or coplanar flange. This manifold is available in traditional and wafer styles and is factory-assembled to transmitters, leak-tested and calibrated for quick installation. Designed for multivariable, static and differential pressure transmitters, this manifold allows instrument isolation, controlled venting and protection from leaking to ensure measurement integrity.
- Assembles to transmitter flange in accordance with IEC 61518
- Traditional (Flange x Flange and Flange x NPT) and wafer manifold styles meet a wide range of applications
- 2-,3- and 5-valve configuration for assembly to multi-variable, absolute, gage and differential pressure transmitters
- Manifold can be factory-assembled to a transmitter, leak-tested and calibrated for quick installation
- 5-valve natural gas configuration available for extra protection from leaking to ensure DP signal integrity
| Maximum Operating Temperature | 1000°F (538°C) |
| Manifold Material | 316 SST/316L SST, Carbon Steel |
| Packing Material | PTFE, Graphite-based |
| Process Connections | 1/2″-14 female NPT, IEC 61518 |
| Process Connection Orientation | Parallel transmitter, 90° transmitter |
| Certifications | Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications |
| Warranty | Up to 5-year limited warranty |
| Process Connection Orientation | Parallel transmitter, 90° transmitter |
| Certifications | Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications |
| Warranty | Up to 5-year limited warranty |
