Description
Part Number: 2051GP3A2B21AB4K5P1Q4Q8D4M5T1

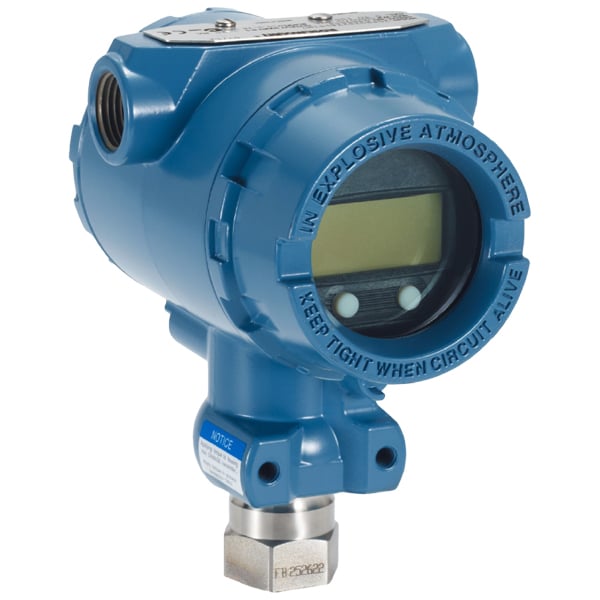

Model: 2051G In-Line Pressure Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 2051G | In-line Pressure Transmitter |
| Pressure type | P | Gage |
| Pressure range | 3 | -14.7 to 800 psi (-1.0 to 55 bar) |
| Transmitter output | A | 4–20 mA with Digital Signal Based on HART Protocol |
| Process connection style | 2B | 1/2–14 NPT female |
| 2(1) | Isolating diaphragm: 316L SST Process connection wetted parts material: 316L SST |
|
| Sensor fill fluid | 1 | Silicone |
| A | Housing material: Aluminum Conduit entry size: 1/2–14 NPT |
|
| Mounting bracket(2) | B4 | Bracket for 2-in. pipe or panel mounting, All SST |
| Product certifications(3) | K5 | USA Explosion-proof, Dust Ignition-proof, Intrinsic Safety, and Nonincendive |
| Pressure testing | P1 | Hydrostatic testing with certificate |
| Calibration certification | Q4 | Calibration certificate |
| Material traceability certification | Q8 | Material traceability certification per EN 10204 3.1 |
| Configuration buttons | D4 | Analog zero and span |
| Display and interface options(4) | M5 | LCD display |
| Transient terminal block | T1 | Transient protection terminal block |
- Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to
certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. - Panel mounting bolts are not supplied.
- Consult an Emerson Representative for availability of Product Certifications.
- Select Configuration Buttons (option code D4 or DZ) if local configuration buttons are required
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 8 Kg
- Made in Singapore
