Description
Part Number: 1066-P-HT-67

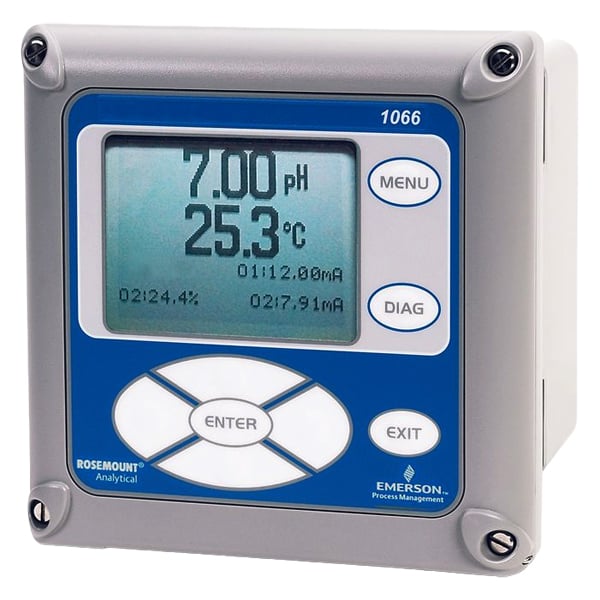

Model: 1066 Single Channel Transmitter
Brand: Rosemount Analytical Inc
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
- Power Supply: Supply voltage at the transmitter terminals should be at least 12.7Vdc. Power supply voltage should cover the voltage drop on the cable plus the external load resistor required for HART communications (250 O)
- Weight: R2 lbs/3 lbs (1 kg/1.5 kg)
- Communication Protocol: HART® Communications & diagnostics: PV, SV, TV, and 4V assignable, temperature
- Diagnostics: PV, SV, TV, and 4V assignable
- Input: One sensor input.
- Measurement Type: pH/ORP, resistivity/conductivity/TDS, % concentration, total and free chlorine, monochloramine, dissolved oxygen, dissolved ozone, and temperature.
Features
- Faster installation using Quick Start programming
- Intrinsically Safe FM, CSA, and ATEX/IECEx Hazardous Location Approvals
- Visibility of process parameters by utilizing HART or Foundation Fieldbus digital communications
- Effortlessly connect with PLCs and DCS’ by choosing the HART or Foundation Fieldbus communication options.
Ordering Information
| Model | 1066 | Single Channel Transmitter |
| Measurement | P | pH/ORP |
| Communication | HT | HART® Digital Communication |
| Approvals | 67 | FM Approved, Intrinsically Safe, and Non-Incendive |
- Estimated Lead Time: 12 – 14 Weeks
- Shipping Weight: 2 Kg
