Description
| Brand |
Micro Motion |
|---|

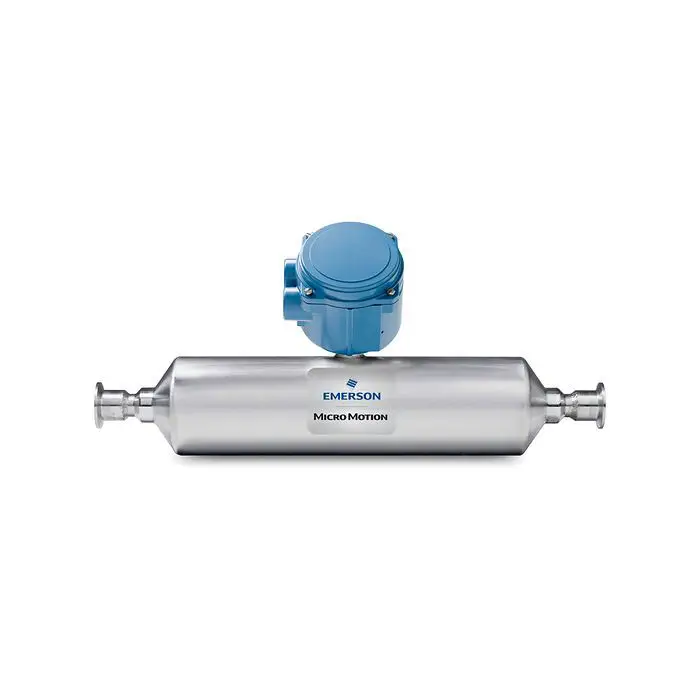

As a B2B supplier, our Micro Motion T100F Straight Tube Coriolis Meter is made of titanium grade 9 and features a 15 Ra surface finish, ensuring excellent corrosion resistance and cleanliness. Its 1-inch (DN25) single straight-tube design optimizes the measurement of mass flow, density, and volume flow, making it suitable for various industrial applications. We have a robust supply chain that guarantees fast delivery and competitive pricing, along with professional technical support to help you enhance your operational efficiency.
| Specifications | Values |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.05% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm3 (±2.0 kg/m3) |
| Density repeatability (Liquid) | ±0.0005 g/cm3 (±0.5 kg/m3) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Features | Details |
|---|---|
| Direct Measurement | Achieve direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature from one device |
| Material | Choose available titanium construction for compatibility with most fluids |
| Connectivity | Meet virtually any connectivity needs with a wide range of transmitter offerings |
| Hygienic Applications | Use with hygienic applications with improved 15 and 32 Ra surface; EHEDG certified, 3-A authorized, ASME BPE |
| Certifications | Broad range of approvals: CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C, D), ATEX, IECEx, Ingress Protection 66/67, NAMUR |
| Ease of Cleaning | Save time with a design that is easy to clean in place (CIP) and steam in place (SIP) |
| Installation | Simplify installation with a highly robust design that doesn't need straight runs or flow conditioning |
