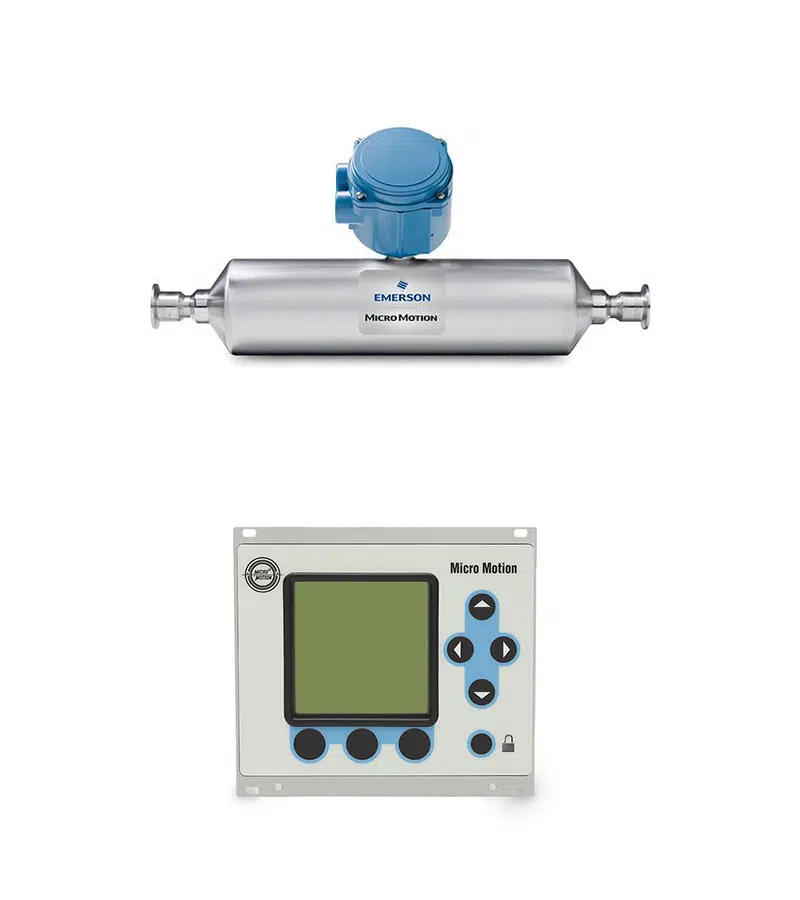

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 3500 Transmitter

As a supplier, we offer the Micro Motion T-Series Straight Tube Coriolis Meter, which includes the T100T sensor and the 3500 transmitter. This device is made from titanium, ensuring excellent corrosion resistance across various fluids, while providing direct inline measurement of mass flow, density, concentration, volume flow, and temperature. The T100T sensor is easy to clean and maintain, while the 3500 transmitter features robust PLC capabilities and a programmable display to enhance operational efficiency.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 3500 Controller Remote Rack/Panel-Mount
Output Variables Mass & volume flow, Net product content, Temperature, Density, Concentration
Local Display Multi-line LCD panel, Backlit, 128 × 128 pixels
Power Options AC: 85 to 265 VAC, DC: 18 to 30 VDC
Input/Output Signals Two active 4–20 mA, Three discrete outputs, One frequency output
Mounting Options Control-room DIN rail or panel-mount
Application Types Batch controller, Custody transfer, Two-phase flow
Hazardous Approvals Suitable for non-hazardous areas only
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct in-line measurement of mass flow, density, concentration, volume flow, and temperature
Construction Available titanium construction for compatibility with most fluids
Connectivity Wide range of transmitter offerings for connectivity needs
Hygienic Applications Improved surface finishes (15 and 32 Ra), EHEDG certified, 3-A authorized, ASME BPE
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Cleaning Design Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design that doesn't need straight runs or flow conditioning
Micro Motion 3500 Controller Remote Rack/Panel-Mount
Cost Efficiency Decrease labor, maintenance, and operating costs with transmitter functions and PLC capabilities
Efficiency Increase efficiency, accelerate throughput, and improve product quality
Configuration Full configuration capabilities without external tools
User Interaction Large, programmable display with descriptive alarms for easy setup and control
Uptime and Consistency MVD technology for faster response and multivariable measurement
