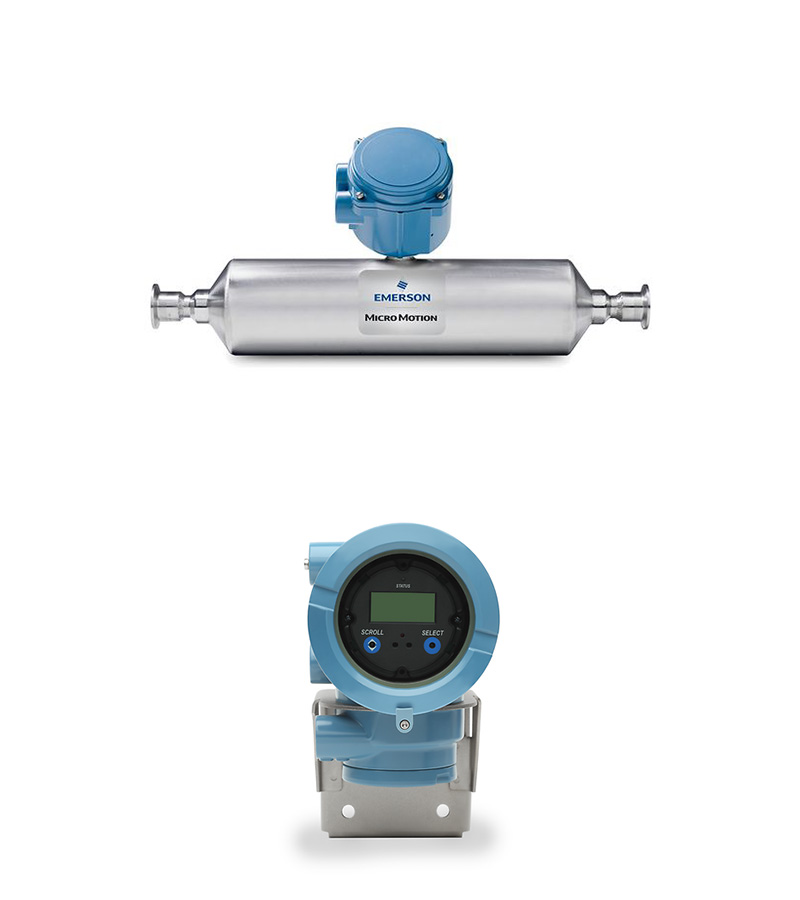

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 2700 Transmitter
1/1

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 2700 Transmitter

As a supplier, we take pride in offering the Micro Motion T-Series Straight Tube Coriolis Meter, which includes the T100T sensor and 2700 transmitter. This series ensures exceptional flow and density measurement accuracy, combined with the durable titanium construction, making it ideal for various industrial environments. We maintain ample inventory for quick delivery and provide comprehensive after-sales support to help our customers enhance production efficiency and business competitiveness.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 2700 Multivariable Transmitter Field and Integral-Mount
Output Variables Mass & volume flow, net product content, temperature, density, concentration
Local Display 2-line LCD panel, glass/plastic lens options
Power 85 to 265 VAC or 18 to 100 VDC, self-switching AC/DC input
Input/Output Signals 4-20 mA and frequency outputs, configurable I/O options
Mounting Options Field-mount, integrally mounted to various Micro Motion sensors
Application Types Continuous process control, custody transfer, meter verification
Hazardous Approvals Class I, Div. 1 & 2; Zone 1 & 2
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Mass flow, density, concentration, volume flow, and temperature
Construction Material Titanium for compatibility with most fluids
Connectivity Wide range of transmitter offerings
Hygienic Applications Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, ASME BPE
Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Cleaning Design Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design, no need for straight runs or flow conditioning
Micro Motion 2700 Multivariable Transmitter Field and Integral-Mount
Mounting Options Integral or remote mounting for flexibility
Diagnostics MVD digital processing for performance under entrained gas and batching
Wiring Costs Lower costs with easy installation
Measurement Features Concentration and net flow measurement without additional instruments
Certifications Custody-transfer approval for SIL2 and SIL3
Measurement Integrity Smart Meter Verification for real-time assurance
Wireless Capability Additional diagnostics without added wiring costs with WirelessHART™
Housing Rugged Class I, Division 1 / Zone 1 with optional local operator interface
