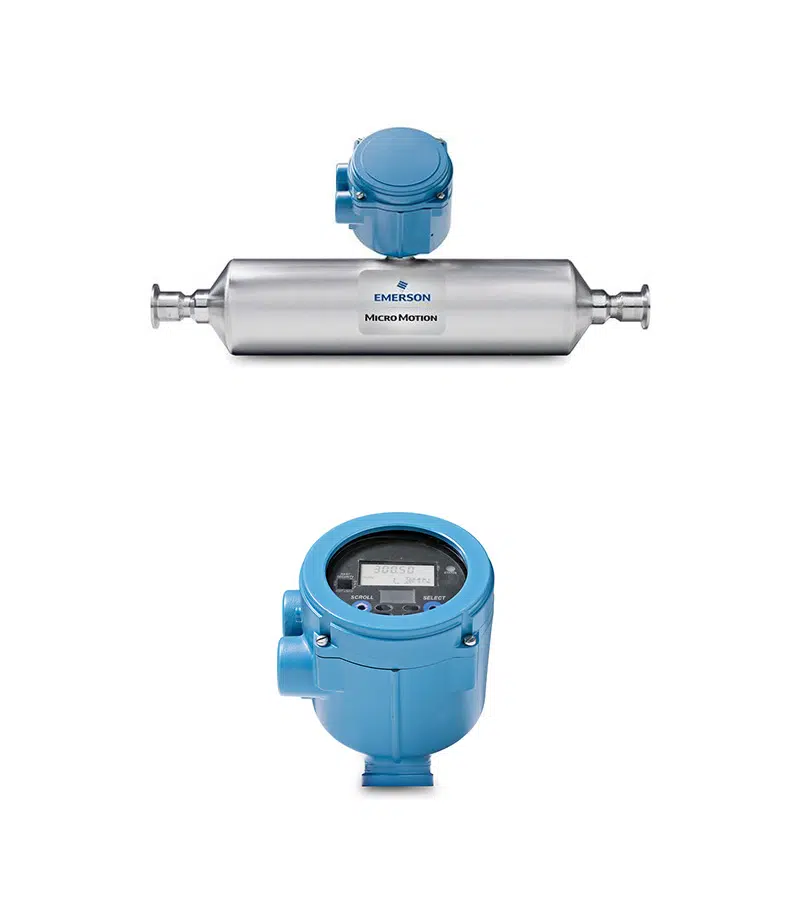

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 2400 Transmitter

As a supplier, we offer the Micro Motion T-Series Straight Tube Coriolis Meter, including the T100T sensor and 2400 transmitter, featuring an excellent mass flow accuracy of ±0.15% and compatibility with various fluids. Its titanium construction and surface finish meet hygiene application standards. The 2400 transmitter’s Smart Meter Verification ensures real-time measurement accuracy. We have a strong supply chain, competitive pricing, and high-quality service to promptly meet customer needs.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 2400S Transmitter Compact, Integral-Mount
Output Variables Mass & volume flow, Net product content, Temperature, Density, Concentration
Local Display Standard user interface with 2-line LCD panel
Power Supply 85–265 VAC, 18–100 VDC
Input/Output Signals One active 4–20 mA output, configurable outputs
Mounting Options Field mount, integral with sensor
Application Types Continuous process control, Meter verification
Hazardous Approvals C1D2, Zone 2
Micro Motion T100T Coriolis Meter Direct in-line measurement of mass flow, density, concentration, volume flow, and temperature.
Construction Titanium for compatibility with most fluids.
Connectivity Wide range of transmitter offerings.
Hygienic Applications 15 and 32 Ra surface; EHEDG certified, 3-A authorized, ASME BPE compliant.
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR.
Ease of Cleaning Easy to clean in place (CIP) and steam in place (SIP).
Installation Robust design requiring no straight runs or flow conditioning.
Micro Motion 2400S Transmitter Diagnostics for performance under entrained gas and batching.
Measurement Integrity Smart Meter Verification for real-time assurance.
Two-Phase Flow Capability Ideal for batching, loading, and entrained gas applications.
User Interface Optical buttons eliminate the need to remove the transmitter cover.
Hazardous Area Approval Class 1, Div. 2 (Zone 2) for both sensor and transmitter.
