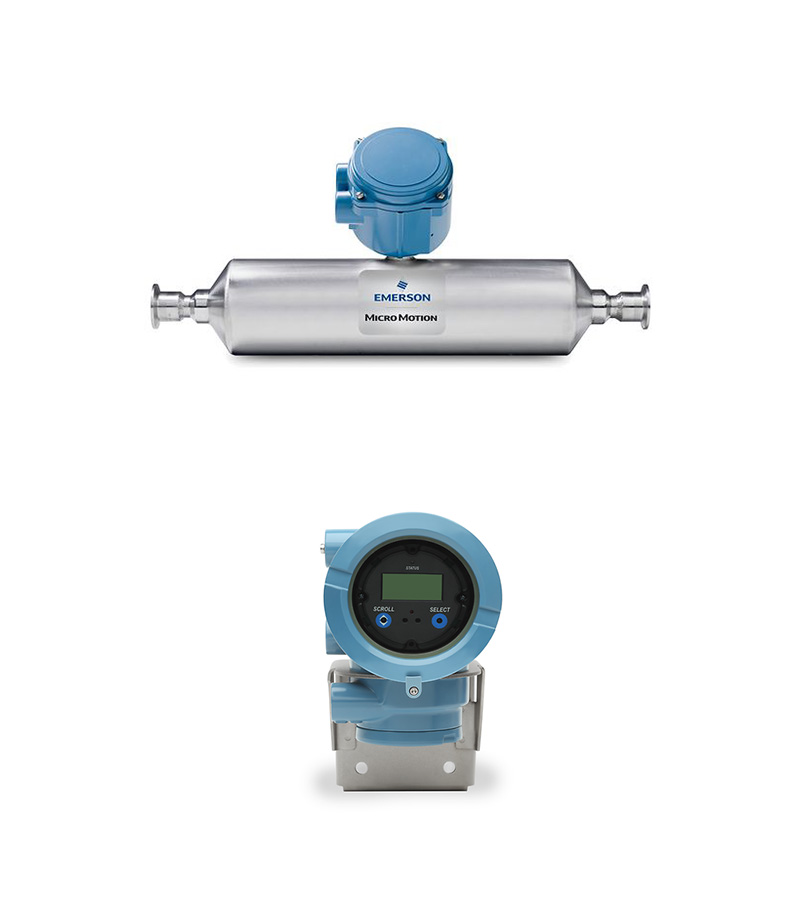

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 1700 Transmitter

As a supplier, the Micro Motion T-Series Straight Tube Coriolis Meter, combining the T100T sensor and 1700 transmitter, delivers exceptional quality and reliability for measuring mass flow, density, and temperature. Its titanium construction and hygienic design meet the compatibility needs of various fluids while ensuring compliance with industry certifications. The flexible installation options and robust diagnostic capabilities of the 1700 transmitter simplify the installation process and reduce costs, making it an ideal solution for precise process control.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 1700 Transmitter Single Variable Field Mount
Output Variables Mass flow, Volume flow
Local Display 2-line LCD panel
Power Supply 85 to 265 VAC, 18 to 100 VDC
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Field-mount, Integrally mounted to Micro Motion sensors
Application Types Continuous process control, Meter verification
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2
Micro Motion T100T Coriolis Meter Direct in-line measurement of mass flow, density, concentration, volume flow, and temperature.
Titanium Construction Compatible with most fluids, enhancing application versatility.
Connectivity Options Wide range of transmitter offerings to meet various connectivity needs.
Hygienic Applications Improved 15 and 32 Ra surface, certified by EHEDG, 3-A authorized, and ASME BPE.
Approvals and Certifications Includes CSA, ATEX, IECEx, IP66/67, and NAMUR.
CIP/SIP Design Easy to clean in place and steam in place, saving time.
Installation Highly robust design that does not require straight runs or flow conditioning.
Micro Motion 1700 Transmitter Integral or remote mounting for maximized flexibility.
Performance Diagnostics Diagnostics for entrained gas and batching with MVD digital processing.
Wiring Costs Lower wiring costs with easy and quick installation.
Concentration Measurement Eliminates the need for additional instruments for concentration and net flow.
Custody-Transfer Approval SIL2 and SIL3 certified for reliability.
Smart Meter Verification Real-time measurement integrity assurance.
WirelessHART™ Access additional diagnostics without extra wiring costs.
Rugged Housing Class I, Division 1 / Zone 1 housing with optional local operator interface.
