Description
Brand
Micro Motion
As a supplier of high-quality flow meters, we recommend the Micro Motion F-Series Coriolis Meter, which combines the F050A sensor and the 1500 transmitter to deliver exceptional measurement accuracy and reliability. The F050A sensor is designed for high-temperature environments, ensuring precise flow measurement under demanding conditions. The 1500 transmitter is easy to install remotely and is suitable for continuous process control and two-phase flow applications. Our products meet international certifications such as UL and ATEX, and we provide robust technical support and after-sales service to help customers enhance production efficiency and achieve business success.

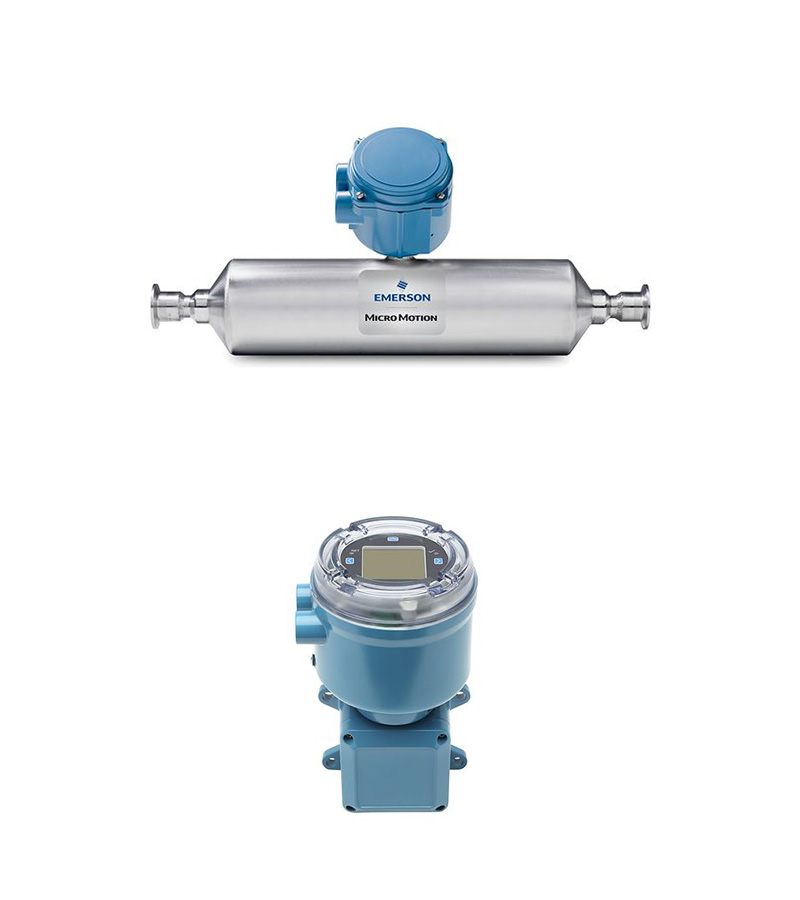

Micro Motion T100T Coriolis Meter
1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid)
±0.15% of rate
Mass Flow Repeatability (Liquid)
±0.05% of rate
Volume Flow Accuracy (Liquid)
±0.25% of rate
Volume Flow Repeatability (Liquid)
±0.05% of rate
Mass Flow Accuracy (Gas)
±0.50% of rate
Mass Flow Repeatability (Gas)
±0.05% of rate
Density Accuracy (Liquid)
±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid)
±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy
±1 °C ±0.5% of reading
Max Working Pressure
1,450 psig (100 barg)
Certifications
UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 1600 Compact Transmitter
Graphical backlit display, four-button controls
Power Supply
18 to 100 VDC, 6 watts typical
Universal Service Port
USB-C terminal for configuration and data transfer
Mounting Options
Field-mount aluminum or hygienic stainless steel
Application Types
Smart Meter Verification, discrete batch control, petroleum measurement
Hazardous Approvals
Class I, Div. 2, Zone 2
Micro Motion T100T Coriolis Meter
Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature.
Material Compatibility
Titanium construction for compatibility with most fluids.
Connectivity
Wide range of transmitter offerings for various connectivity needs.
Hygienic Applications
Improved surface finish (15 and 32 Ra), EHEDG certified, 3-A authorized, and ASME BPE compliant.
Certifications
Broad range including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Cleaning
Easy to clean in place (CIP) and steam in place (SIP).
Installation
Highly robust design; no need for straight runs or flow conditioning.
Micro Motion 1600 Compact Transmitter
Ease of installation with Ethernet/IP and Power Over Ethernet (PoE) capabilities.
Data Insights
Data historian for short- and long-term insights on process events and fluid quality.
Smart Meter Verification
Check meter health in fewer than 90 seconds.
Software Features
Licensable features such as Concentration Measurement and Advanced Phase Measurement.
Graphic Display
Supports 8 languages and can be rotated using integrated software.
