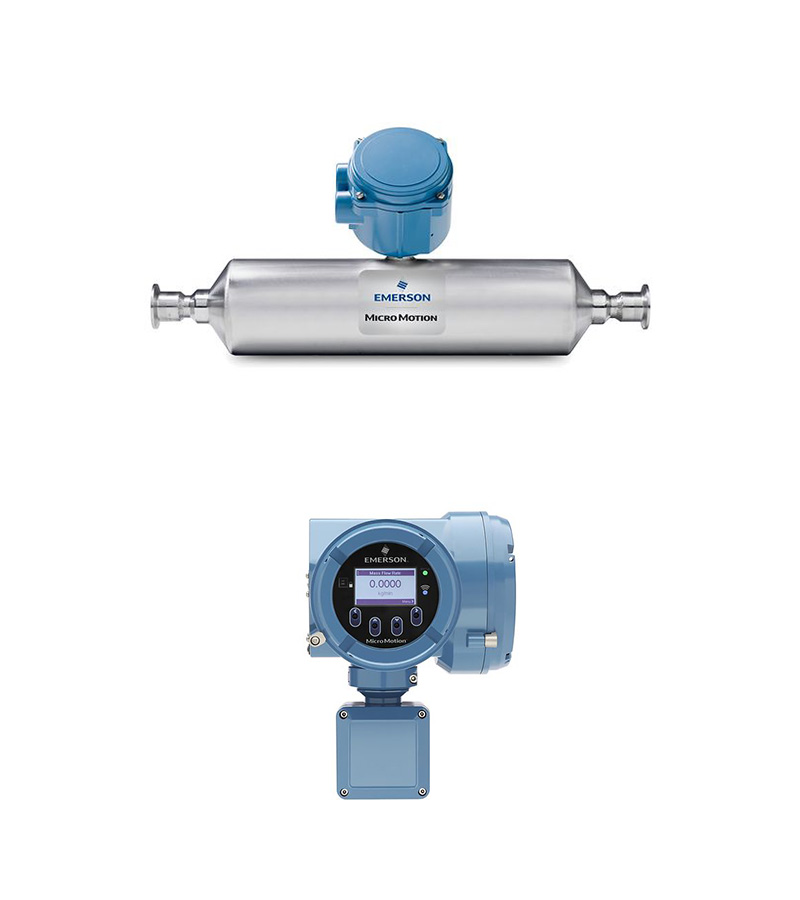

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 5700 Transmitter
1/1

micro motion coriolis,Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 5700 Transmitter

As a supplier, we offer the Micro Motion T-Series Straight Tube Coriolis Meter, consisting of the T050T sensor and the 5700 transmitter, which is the ideal solution for measuring flow and density. With high accuracy and corrosion-resistant titanium construction, this product is suitable for a variety of fluids, ensuring reliability and consistency in various applications. Our robust supply chain guarantees ample inventory and quick delivery, while we provide excellent after-sales service to help you resolve any technical issues.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion T050T Coriolis Meter 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications
  • UL
  • CSA
  • ATEX
  • ASME
  • 3-A
  • USDA
  • EHEDG
Micro Motion 5700 Field-Mount Transmitter Graphical backlit display, Four-button optical controls
Power 85 to 240 VAC, 50/60 Hz; 18 to 100 VDC
Universal Service Port Allows connection and data transfer
Configurable I/O Version Up to 5 licensable channels
Communication Protocol WirelessHART, FOUNDATION Fieldbus, PROFIBUS-PA
Wi-Fi Display Option Enables point-to-point wireless communication
Intrinsically Safe Version Up to 4 licensable IS channels
Ethernet Version Dual Ethernet ports supporting multiple protocols
Mounting Options Field-mount or integrally mounted
Application Types
  • Smart Meter Verification
  • Discrete batch control
  • Concentration measurement
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2
Micro Motion T050T Coriolis Meter 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct in-line measurement of mass flow, density, concentration, volume flow, and temperature
Material Compatibility Titanium construction suitable for most fluids
Hygienic Applications Improved surface finishes, EHEDG certified, 3-A authorized, ASME BPE compliant
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Cleaning Design Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design requiring no straight runs or flow conditioning
Micro Motion 5700 Field-Mount Transmitter Native Ethernet architecture for fast installations
Application Response Best performance in meter proving, filling, dosing, and batching
Data Historian Capture insights on process events, fluid quality, and measurement stability
Configurable I/O Channels Up to 5 fully configurable channels available
Smart Meter Verification Check meter health in less than 90 seconds
Zero Verification Easily confirm calibration and re-zero the meter
Multi-Phase Flow Events Real-time indication improves process control
Installation and Operation Minimized time and expertise required
