Description
| Brand |
Micro Motion |
|---|
| Specification | Parameter |
|---|---|
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.05% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Density Repeatability (Liquid) | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure of Sensor | 1,450 psig (100 barg) |
| Certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Specification | Parameter |
|---|---|
| Local Display | Graphical display with optional backlight, four-button capacitive touch controls |
| Supported Languages | English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: Channel A (4-20mA/HART), Channel B (configurable) |
| Wireless HART | Available with THUM adapter |
| Mounting Options | Field-mount, integrally mounted, remotely mounted 9-wire |
| Application Types | Smart Meter Verification, Concentration Measurement, API Referral |
| Hazardous Approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2; Intrinsically Safe; Explosion Proof |

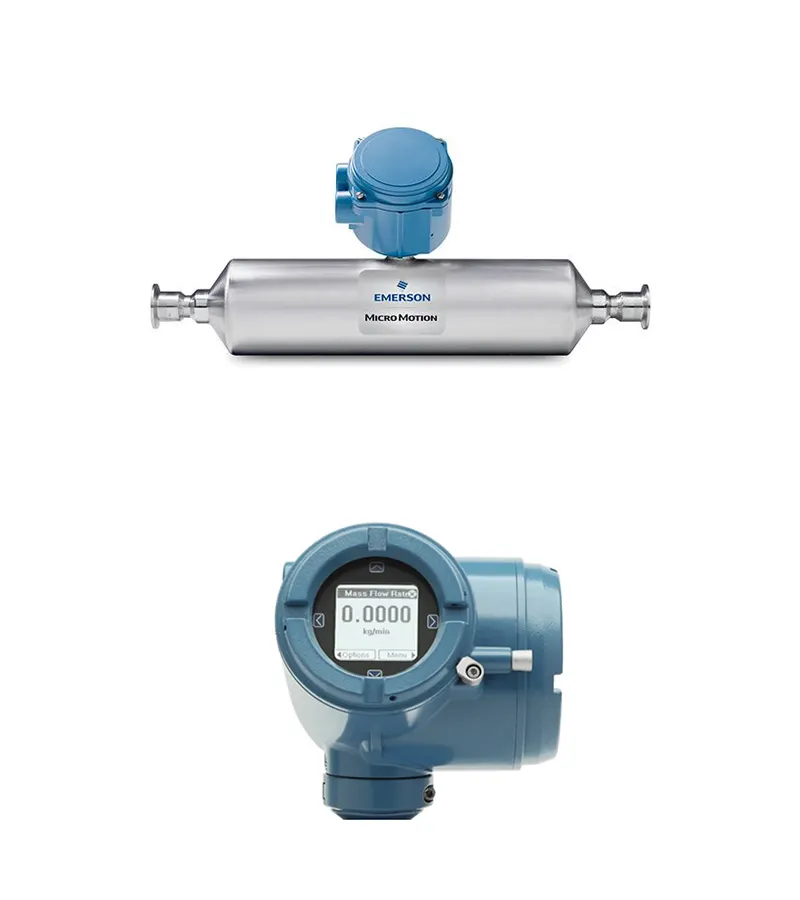

| Micro Motion T050T Coriolis Meter | 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish |
| Measurement Capabilities | Mass flow, density, concentration, volume flow, and temperature |
| Titanium Construction | Compatible with most fluids |
| Connectivity | Wide range of transmitter offerings |
| Hygienic Applications | EHEDG certified, 3-A authorized, ASME BPE |
| Approvals and Certifications | CSA, ATEX, IECEx, IP66/67, NAMUR |
| Cleaning Design | Easy to clean in place (CIP) and steam in place (SIP) |
| Installation | Robust design requires no straight runs or flow conditioning |
| Micro Motion 4200 2-Wire Transmitter | Compatible with a wide range of Coriolis mass flow sensors |
| Mass Flow Accuracy | ±0.10% for liquids/slurries, ±0.25% for gases |
| Density Accuracy | ±0.0005 g/cc for liquids and slurries |
| Real-Time Clock | Time stamps process data and audit logs |
| Graphic Display | Supports 8 languages, can rotate without removing cover |
| Replacement Ease | Minimal effort, no extra power or cabling costs |
| Smart Meter Verification | Assess meter condition for erosion and calibration |
| Safety Certification | SIL2 single use, SIL3 multiple use per IEC 61508 |
| Wireless Option | THUM™ for installation and operation flexibility |
