Description
| Brand |
Micro Motion |
|---|

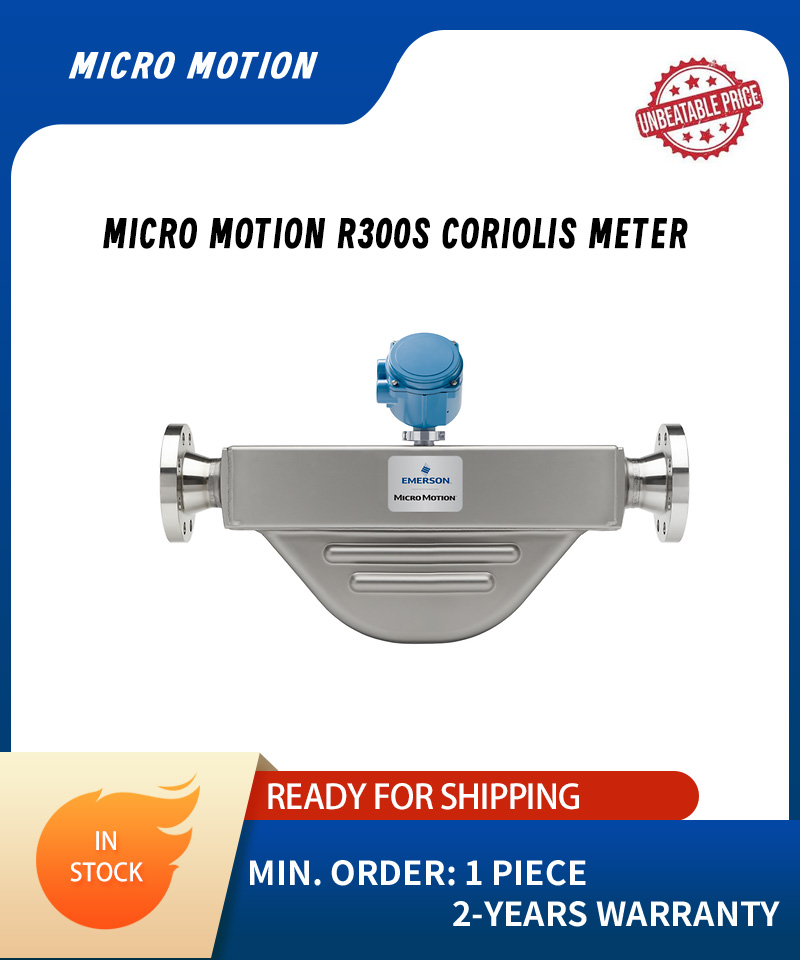

As a B2B supplier, we offer the Micro Motion R300S Coriolis Meter, designed for high-performance liquid measurement. This meter is made of high-quality 316L stainless steel, ensuring excellent measurement accuracy and reliability, with multiple certifications such as CSA and ATEX, making it suitable for various industrial applications. With a robust supply chain and fast delivery capabilities, along with professional technical support, we can effectively enhance your production efficiency and help you maintain a competitive edge in a fierce market. Choose us for exceptional products and services.
| Specification | Value |
|---|---|
| Mass Flow Accuracy (Liquid) | ±0.50% of rate (standard) ±0.40% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.25% of rate (standard) ±0.20% of rate (optional) |
| Volume Flow Accuracy (Liquid) | ±0.50% of rate |
| Volume Flow Repeatability (Liquid) | ±0.25% of rate |
| Mass Flow Accuracy (Gas) | ±0.75% of rate |
| Mass Flow Repeatability (Gas) | ±0.50% of rate |
| Density Accuracy (Liquid) | ±0.01 g/cm³ (10.0 kg/m³) (standard) ±0.003 g/cm³ (3.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 2,300 psig (159 barg) |
| Approvals and Certifications | CSA, IECEx, NEPSI, ATEX |
| Feature | Description |
|---|---|
| High-Performance Measurement | Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design. |
| Material Flexibility | Increase flexibility with available 316L stainless steel construction that is compatible with most fluids. |
| Cost Efficiency | Cut costs with an integral transmitter that provides a flow-variable-only architecture. |
| Rugged Transmitter Options | Choose from rugged transmitter options including Class I, Division 1/Zone 1 housing with optional local-operator interface. |
| Approvals and Certifications | Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Low Maintenance | Minimize maintenance and boost long-term reliability with no moving parts to wear or replace. |
| Compact Design | Install virtually anywhere with compact design. |
