Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, we offer the Micro Motion R150S Coriolis Meter, constructed from durable 316L stainless steel to ensure reliable liquid measurement. With certifications such as CSA and ATEX, it is suitable for a variety of industrial applications. Our efficient supply chain and rapid delivery, combined with professional technical support, can effectively enhance your production efficiency and market competitiveness. Choose the Micro Motion R150S for exceptional performance and service.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.50% of rate (standard), ±0.40% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.25% of rate (standard), ±0.20% of rate (optional) |
| Volume flow accuracy (Liquid) | ±0.50% of rate |
| Volume flow repeatability (Liquid) | ±0.25% of rate |
| Mass flow accuracy (Gas) | ±0.75% of rate |
| Mass flow repeatability (Gas) | ±0.50% of rate |
| Density accuracy (Liquid) | ±0.01 g/cm³ (10.0 kg/m³) (standard), ±0.003 g/cm³ (3.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • NEPSI • ATEX |

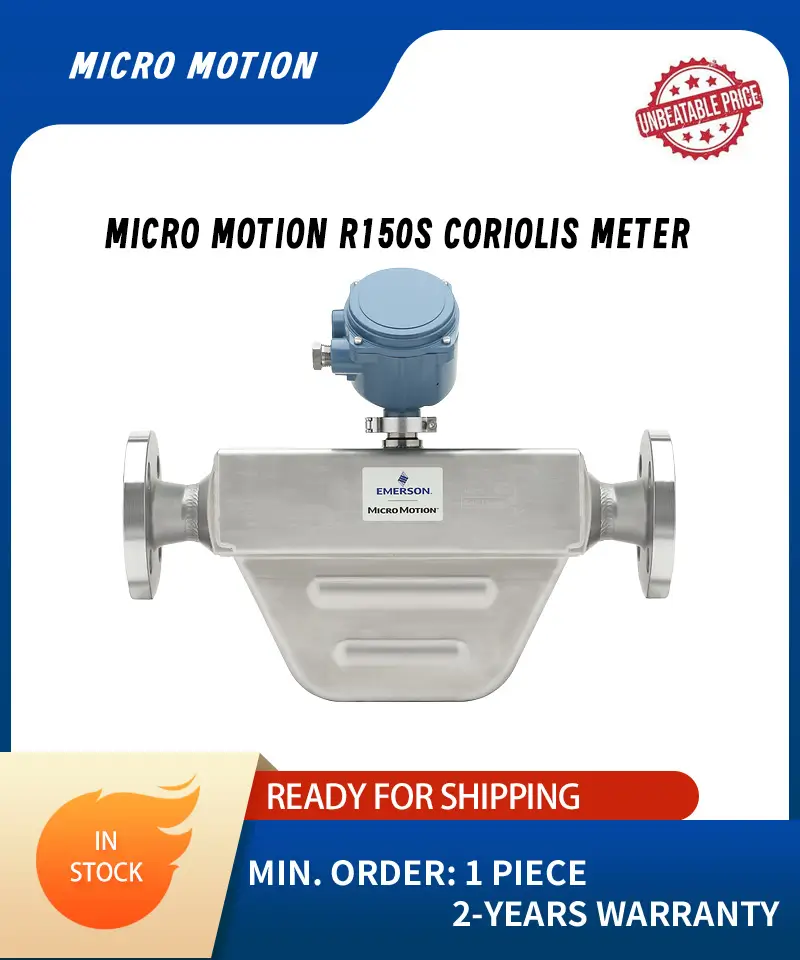

Micro Motion R150S Coriolis Meter
| Feature | Description |
|---|---|
| Performance Measurement | Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design. |
| Material Flexibility | Increase flexibility with available 316L stainless steel construction that is compatible with most fluids. |
| Cost Efficiency | Cut costs with an integral transmitter that provides a flow-variable-only architecture. |
| Rugged Options | Choose from rugged transmitter options including: Class I, Division 1/Zone 1 housing with optional local-operator interface. |
| Certifications | Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Maintenance | Minimize maintenance and boost long-term reliability with no moving parts to wear or replace. |
| Installation | Install virtually anywhere with a compact design. |
