Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, we offer the Micro Motion R025S Coriolis Meter, made from high-quality 316L stainless steel, with a flow accuracy of ±0.50% and a repeatability of ±0.25%, ensuring stable measurements. With our strong supply chain capabilities, we can deliver quickly and provide professional technical support and customized services, helping our customers gain a competitive edge. Choosing the R025S means choosing not just a high-quality product, but a reliable partner.
| Specifications | Values |
|---|---|
| Mass flow accuracy (Liquid) | ±0.50% of rate (standard), ±0.40% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.25% of rate (standard), ±0.20% of rate (optional) |
| Volume flow accuracy (Liquid) | ±0.50% of rate |
| Volume flow repeatability (Liquid) | ±0.25% of rate |
| Mass flow accuracy (Gas) | ±0.75% of rate |
| Mass flow repeatability (Gas) | ±0.50% of rate |
| Density accuracy (Liquid) | ±0.01 g/cm³ (10.0 kg/m³) (standard), ±0.003 g/cm³ (3.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • NEPSI • ATEX |

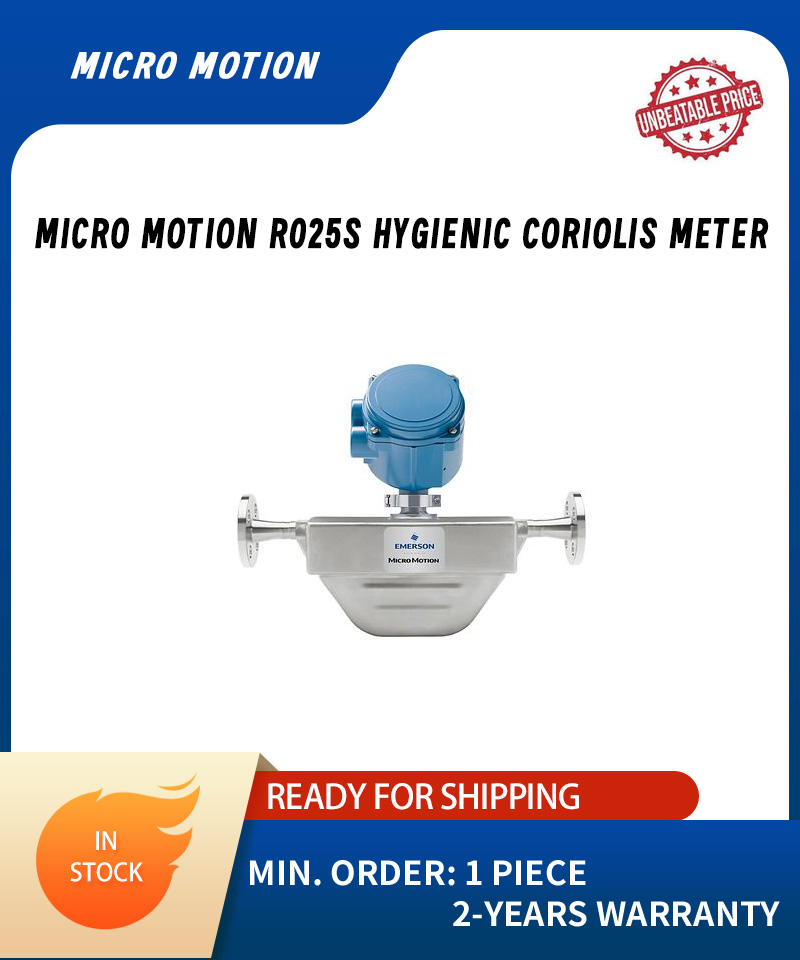

Micro Motion R025S Coriolis Meter
| Features | Details |
|---|---|
| High Performance Measurement | Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design |
| Flexible Construction | Increase flexibility with available 316L stainless steel construction that is compatible with most fluids |
| Cost Efficiency | Cut costs with an integral transmitter that provides a flow-variable-only architecture |
| Rugged Options | Choose from rugged transmitter options including Class I, Division 1/Zone 1 housing with optional local-operator interface |
| Certifications | Broad range of meter approvals and certifications, including; CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Low Maintenance | Minimize maintenance and boost long-term reliability with no moving parts to wear or replace |
| Compact Design | Install virtually anywhere with compact design |
