Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |

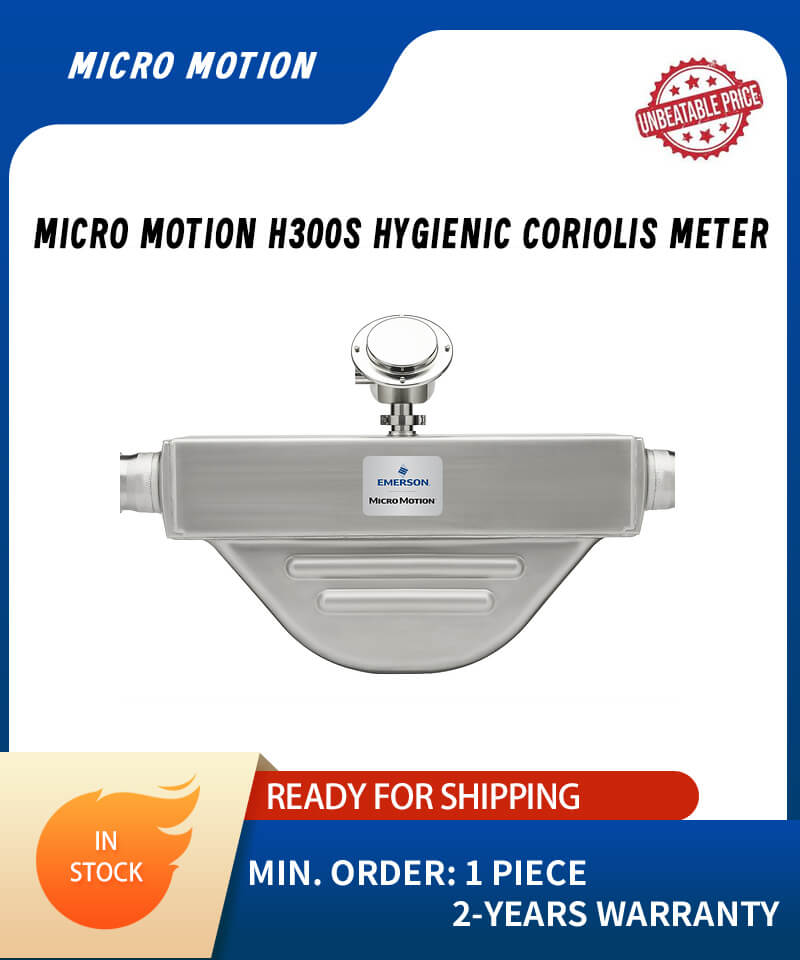

Micro Motion H300S Hygienic Coriolis Meter
As a B2B supplier, the Micro Motion H300S Hygienic Coriolis Meter combines high-precision measurement with a robust supply chain, offering ample stock, fast delivery, and exceptional technical support for seamless and efficient hygienic applications.
| Features | Details |
|---|---|
| Minimize variability in process control with superior sensitivity in a compact design | Ensure product consistency and quality with superior density measurement |
| Enable fast product change-over with self-draining design and superior temperature stability | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Gain real-time and in-process measurement integrity assurance with Smart Meter Verification | Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings |
| Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR | Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required |
