Description
| Brand |
Micro Motion |
|---|
| Specification | Description |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,015 psig (70 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |

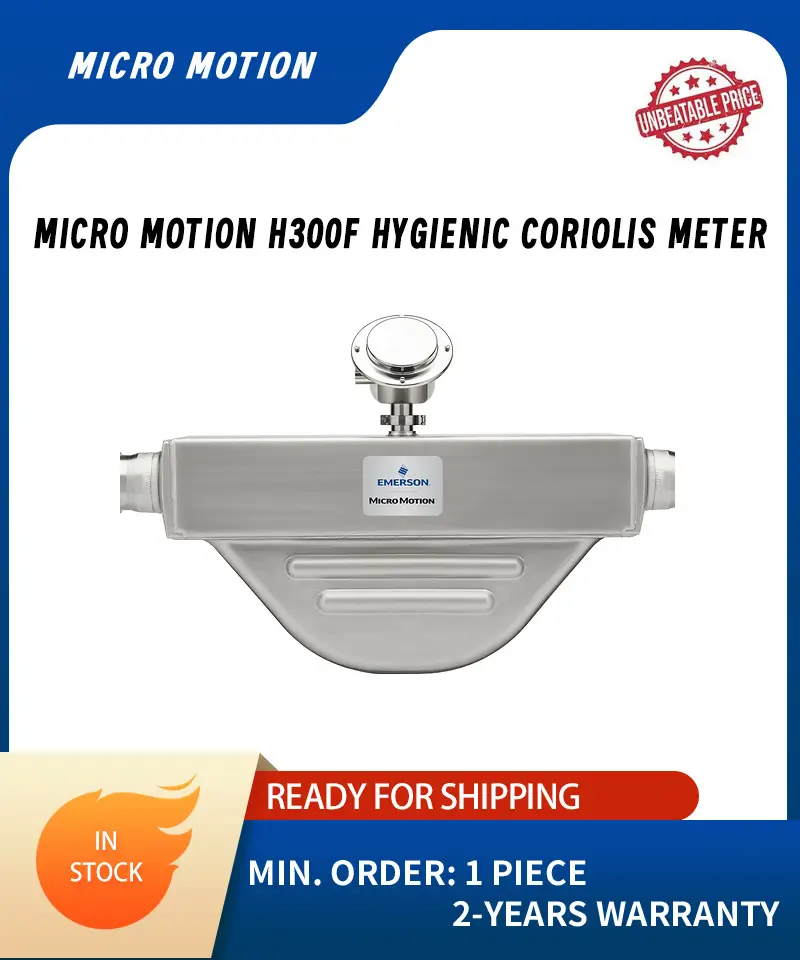

H300F Hygienic Coriolis Meter
As a B2B supplier, the Micro Motion H300F Hygienic Coriolis Meter offers unmatched precision and reliability for your sanitary applications. Made from 316L stainless steel with a 15 Ra finish, it ensures accurate measurement, superior process control, and rapid product change-over. With certifications like 3A, EHEDG, and ATEX, and backed by our strong supply chain and technical support, this flow meter is designed to meet the rigorous demands of your operations, ensuring both efficiency and compliance.
| Feature | Description |
| Minimize Variability | Minimize variability in process control with superior sensitivity in a compact design |
| Ensure Consistency | Ensure product consistency and quality with superior density measurement |
| Fast Product Change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Polished 316L Options | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Smart Meter Verification | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| Two-phase Flow | Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings |
| Approvals and Certifications | Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Sanitary Environments | Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required |
