micro motion coriolis,Micro Motion H100S Hygienic Coriolis Meter | H100S Coriolis Meter | Mass Flow Meter Supplier

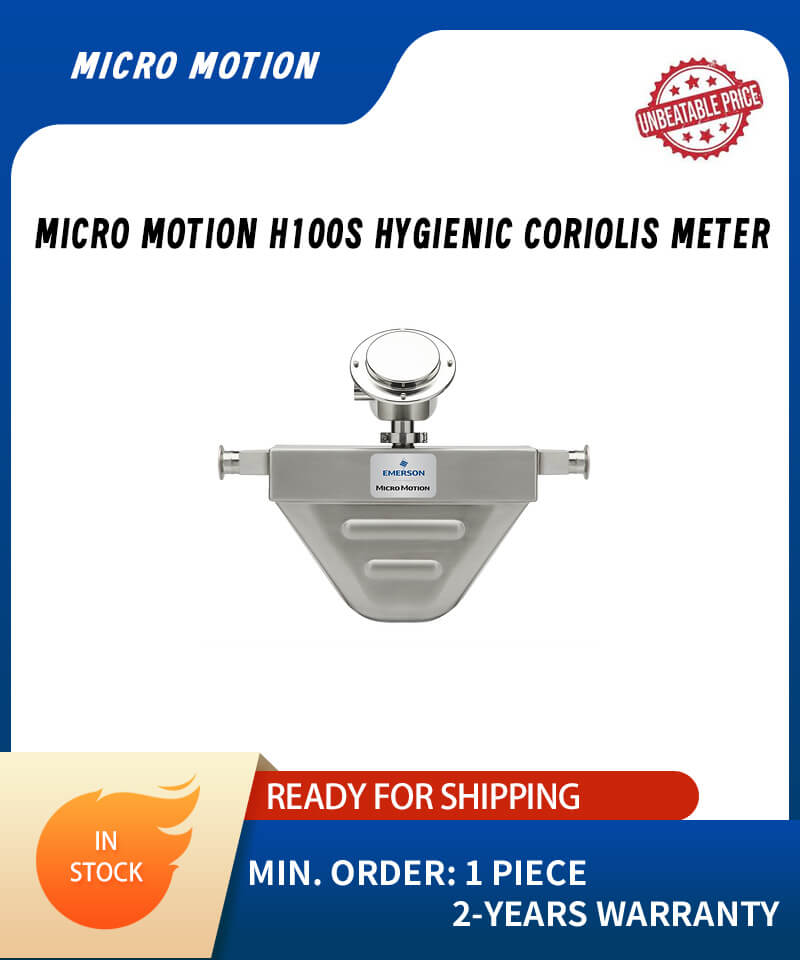

As a supplier, we offer the Micro Motion H100S Hygienic Coriolis Meter, made of 316L stainless steel with a 32 Ra finish (0.8 µm) and approved by 3A/EHEDG. This flow meter is designed for hygienic applications that require highly reliable, repeatable, and robust measurement. It ensures precise and stable performance in high-standard environments. We are committed to providing advanced measurement technology, supported by an excellent supply chain and technical support to ensure your production efficiency and business stability.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

As a B2B supplier, we provide the Micro Motion H100S Hygienic Coriolis Meter, engineered for high-standard sanitary environments. Featuring 316L stainless steel, a 32 Ra finish, and compliance with 3A/EHEDG standards, it delivers ±0.10% mass flow accuracy and ±0.002 g/cm³ density accuracy. With its self-draining design and robust certifications, it ensures reliable performance in SIP, CIP, and other hygienic applications. We offer fast delivery, competitive pricing, and exceptional technical support to enhance your operational efficiency.

Specification Details
Mass flow accuracy (Liquid) ±0.15% of rate (standard), ±0.10% of rate (optional)
Mass flow repeatability (Liquid) ±0.05% of rate
Volume flow accuracy (Liquid) ±0.25% of rate (standard), ±0.15% of rate (optional)
Volume flow repeatability (Liquid) ±0.05% of rate
Mass flow accuracy (Gas) ±0.50% of rate
Mass flow repeatability (Gas) ±0.25% of rate
Density accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional)
Temperature accuracy ±1 °C ±0.5% of reading
Sensor maximum working pressure 1,450 psig (100 barg)
Meter approvals, calibrations, and certifications • CSA • IECEx • ATEX



Features Description
Minimize variability Minimize variability in process control with superior sensitivity in a compact design.
Ensure consistency Ensure product consistency and quality with superior density measurement.
Enable fast change-over Enable fast product change-over with self-draining design and superior temperature stability.
Choose options Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra.
Real-time verification Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
Two-phase flow capabilities Realize superior two-phase flow capabilities for batching, loading, and entrained air applications from compact, hygienic SST transmitter housings.
Broad certifications Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Use in environments Use in SIP, CIP, and sanitary environments where 3-A and EHEDG compliance is required.
