Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard) ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard) ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard) ±0.001 g/cm³ (±1.0 kg/m³) (optional) ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,015 psig (70 barg) |
| Approvals, calibrations, and certifications | • CSA • IECEx • ATEX |

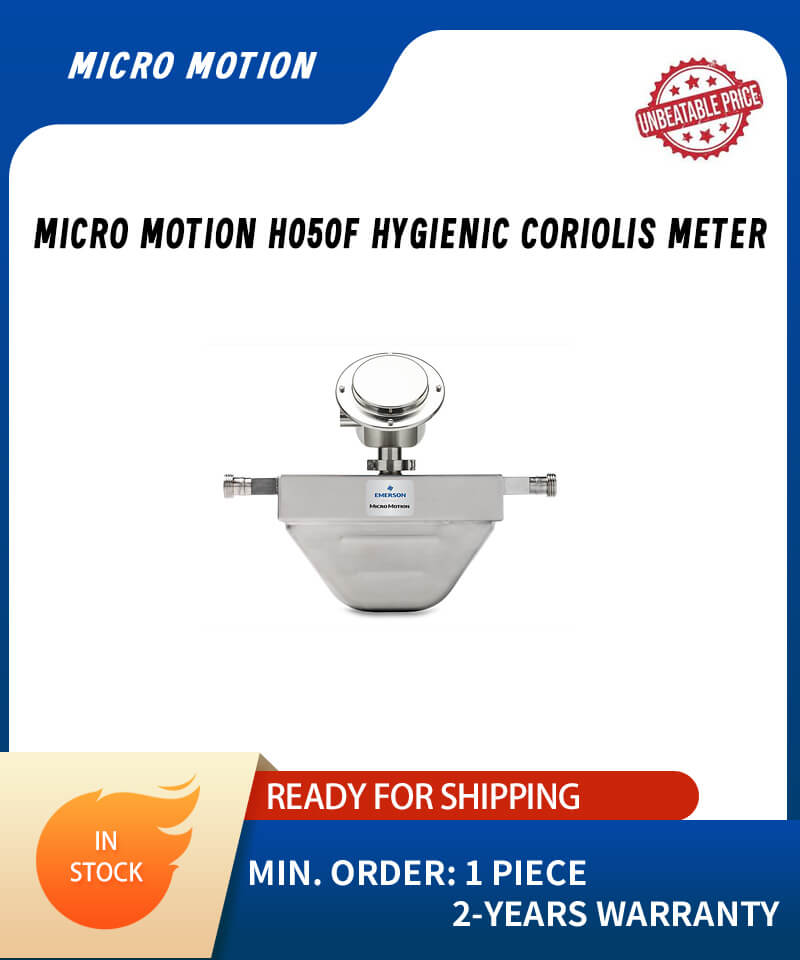

H050F Hygienic Coriolis Meter
As a B2B supplier, we offer the Micro Motion H050F Hygienic Coriolis Meter, backed by a reliable supply chain to ensure fast delivery and consistent stock availability. Designed with 316L stainless steel and a 15 Ra polished finish, it provides high precision and reliability for hygienic applications. Our dedicated support team is ready to provide comprehensive technical assistance and after-sales service, ensuring smooth operations and enhanced production efficiency for your business.
| Feature | Description |
| Minimize variability | Minimize variability in process control with superior sensitivity in a compact design |
| Ensure product consistency | Ensure product consistency and quality with superior density measurement |
| Fast product change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Polished 316L stainless steel | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Smart Meter Verification | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| Two-phase flow capabilities | Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings |
| Approvals and certifications | Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| SIP, CIP environments | Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required |
