Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|

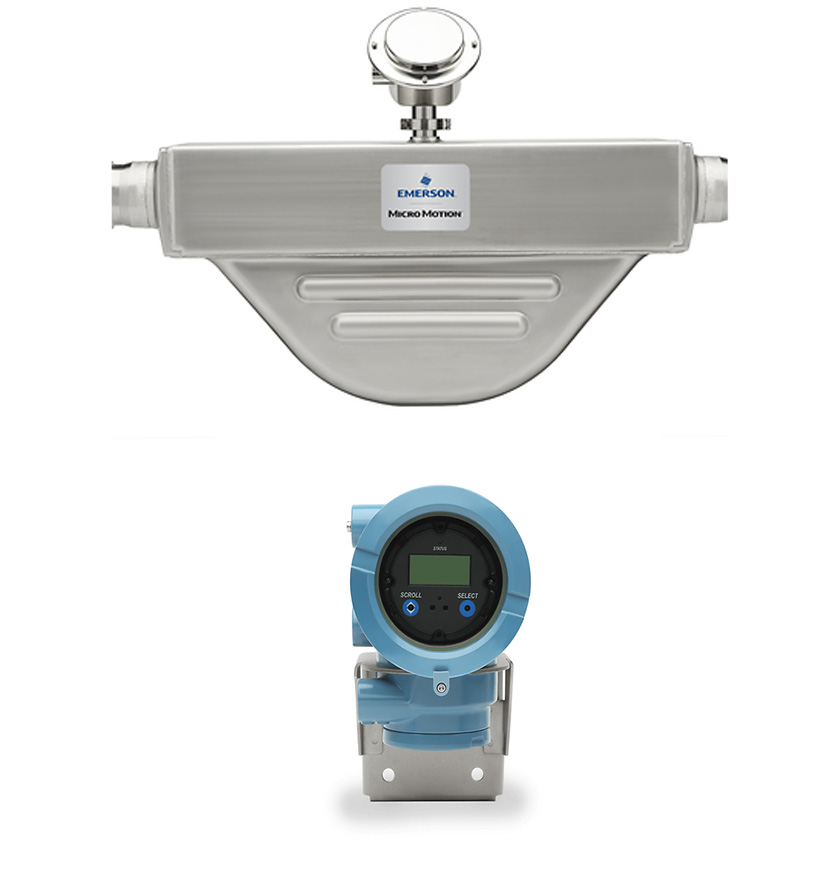

| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter | |
| Output Variables | • Mass & volume flow • Net product content / flow • Temperature • Density • Concentration |
| Local Display | Standard user interface with 2-line LCD panel Two optical switches for local operation Glass or plastic lens options |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum 18 to 100 VDC, 6 watts typical, 11 watts maximum Complies with low voltage directive 2006/95/EC |
| Input/Output Signals | Not intrinsically safe • One active 4–20 mA output • One active frequency output (configurable as discrete output) Intrinsically safe option available |
| Mounting Options | Field-mount Integrally mounted to Micro Motion sensors Remotely mounted to any 4-wire or 9-wire Coriolis sensor |
| Application Types | Continuous process control Custody transfer Two-phase flow/entrained gas Meter verification |
| Hazardous Approvals | Class I, Div. 1 Class I, Div. 2 Zone 1 Zone 2 |
| Micro Motion H400S Hygienic Coriolis Meter | Minimize variability in process control with superior sensitivity in a compact design. Ensure product consistency and quality with superior density measurement. Enable fast product change-over with self-draining design and superior temperature stability. Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra. Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings. Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR. Use in SIP, CIP and sanitary environments where 3-A compliance is required. |
| Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter | Maximize flexibility with integral or remote mounting. Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing. Lower wiring costs and install easily and quickly. Eliminate the need for additional instruments with concentration and net flow measurement. Rely on custody-transfer approval and certification for SIL2 and SIL3. Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™. Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface. |
