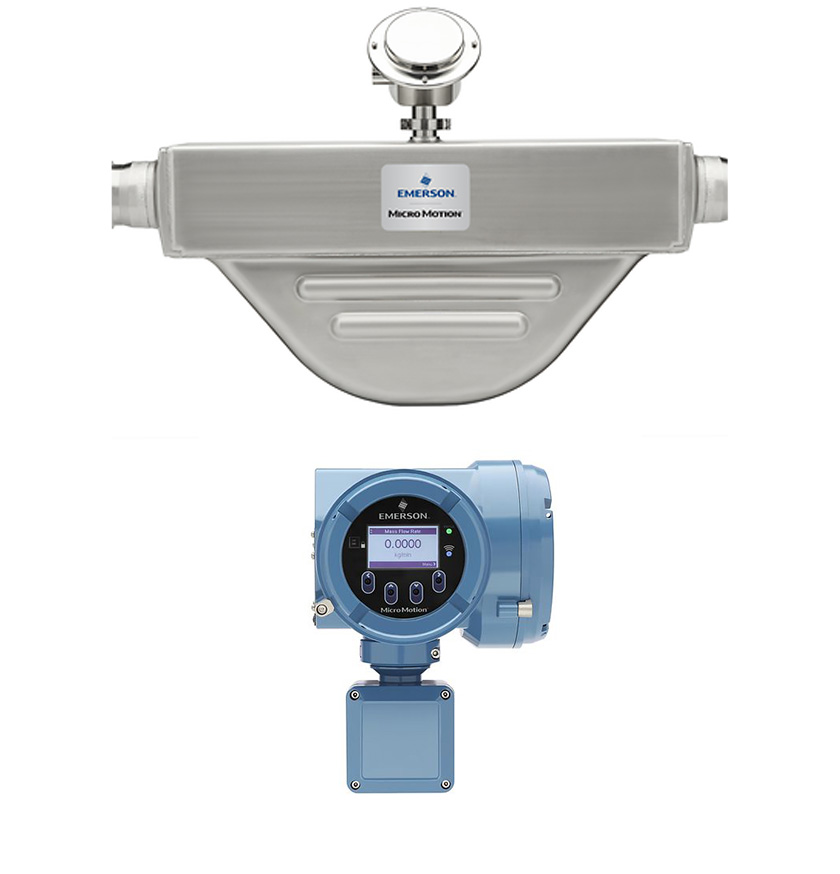

micro motion coriolis,Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 5700 Transmitter

As a leading supplier, our Micro Motion H400F Hygienic Coriolis Meter and 5700 Field-Mount Transmitter are ideal choices for achieving superior process control. The H400F features 316L stainless steel and a surface finish of up to 15 Ra, ensuring reliability and sensitivity in high-safety and sanitary environments. Its Smart Meter Verification functionality allows for real-time flow monitoring to guarantee product quality.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals CSA, IECEx, ATEX
Specification Details
Micro Motion 5700 Field-Mount Transmitter
Local Display Graphical backlit display, four-button optical controls, flowmeter-status LED
Power Self-switching AC/DC input, 85 to 240 VAC or 18 to 100 VDC
Universal Service Port Design allows for connection and data transfer using standard equipment
Configurable I/O Version Up to 5 licensable channels with various configurations
Communication Protocol WirelessHART available with 775 Smart Wireless THUM adapter
Wi-Fi Display Option Enables point-to-point wireless communication for meter configuration
SIL Certified Device Uses internal readback loop to verify the milliamp output
Mounting Options Field-mount aluminum and stainless steel housing options
Application Types Smart Meter Verification, discrete batch control, petroleum measurement
Hazardous Approvals Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2, SIL/SIS Certification
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Superior sensitivity in a compact design
Ensure Product Consistency Superior density measurement
Fast Product Change-Over Self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with a surface finish up to 15 Ra
Real-Time Measurement Integrity Smart Meter Verification
Two-Phase Flow Capabilities Suitable for batching, loading, and entrained air applications
Meter Approvals and Certifications CSA, ATEX, IECEx, IP66/67, NAMUR
Suitable Environments SIP, CIP, and sanitary environments requiring 3-A compliance
Micro Motion 5700 Field-Mount Transmitter
Installation Fast, flexible installations with native Ethernet architecture
Response in Challenging Applications Ideal for meter proving, filling, dosing, and batching
Data Historian Captures insights about process events, fluid quality, and measurement stability
Configurable I/O Channels Up to 5 fully configurable channels
Meter Health Check Check in fewer than 90 seconds with Smart Meter Verification
Zero Verification Easy calibration confirmation for re-zeroing the meter
Improve Process Control Real-time indication of multi-phase flow events
Minimize Installation Time Requires less time and expertise to install and operate
