Description
| Brand |
Micro Motion |
|---|

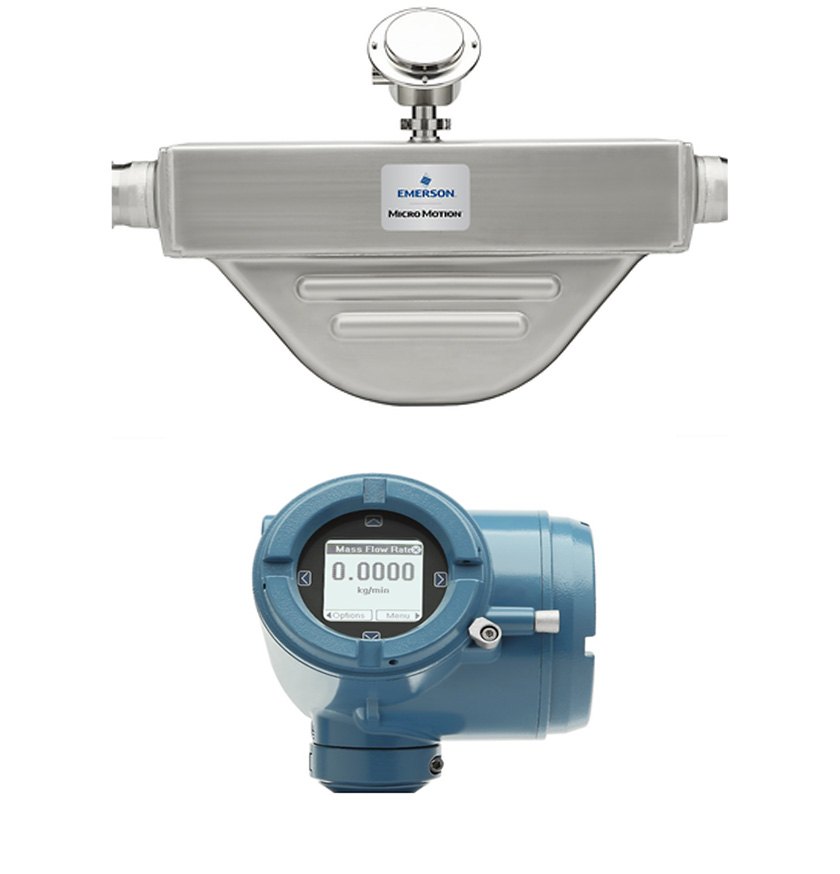

| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 4200 2-Wire Transmitter | |
| Local Display | • Graphical display with optional backlight setting • Four-button capacitive touch controls • Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: • Channel A: loop-powered 4-20mA/HART • Channel B: externally-powered configurable for 4-20mA, frequency output, or discrete output (Licensable Option) |
| WirelessHART | WirelessHART available with THUM adapter |
| Mounting Options | • Field-mount • Integrally mounted to various Micro Motion sensors • Remotely mounted 9-wire with mounting bracket |
| Application Types | • Smart Meter Verification • Concentration measurement • API Referral |
| Hazardous Approvals | • Class I, Div. 1 • Class I, Div. 2 • Zone 1 • Zone 2 • Intrinsically Safe • Explosion Proof |
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Process Control | Minimize variability with superior sensitivity in a compact design |
| Product Consistency | Ensure quality with superior density measurement |
| Fast Change-Over | Self-draining design with superior temperature stability |
| Material Options | Highly polished 316L stainless steel with surface finish up to 15 Ra |
| Real-Time Measurement | Smart Meter Verification for integrity assurance |
| Two-Phase Flow Capabilities | Compact, hygienic SST transmitter housing for batching and loading |
| Approvals and Certifications | Broad range including; CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR |
| Sanitary Environments | Use in SIP, CIP environments where 3-A compliance is required |
| Micro Motion 4200 2-Wire Transmitter | |
| Accuracy | Up to ±0.10% for mass flow, ±0.0005 g/cc density for liquids; ±0.25% for gases |
| Data Management | Integrated real-time clock for timestamps, alerts, and audit logs |
| Graphic Display | Supports 8 languages, can be rotated without removing front cover |
| Installation Flexibility | Replace existing 2-wire devices easily, expand without extra power costs |
| Smart Meter Verification | Quick assessment for erosion, corrosion, and calibration effects; basic version included |
| Safety Certification | Certified for SIL2 single use and SIL3 multiple use per IEC 61508 |
| Measurement Efficiency | Accurate, repeatable mass measurement reduces the number of devices needed |
| Wireless Option | Wireless THUM™ option for maximum installation flexibility |
